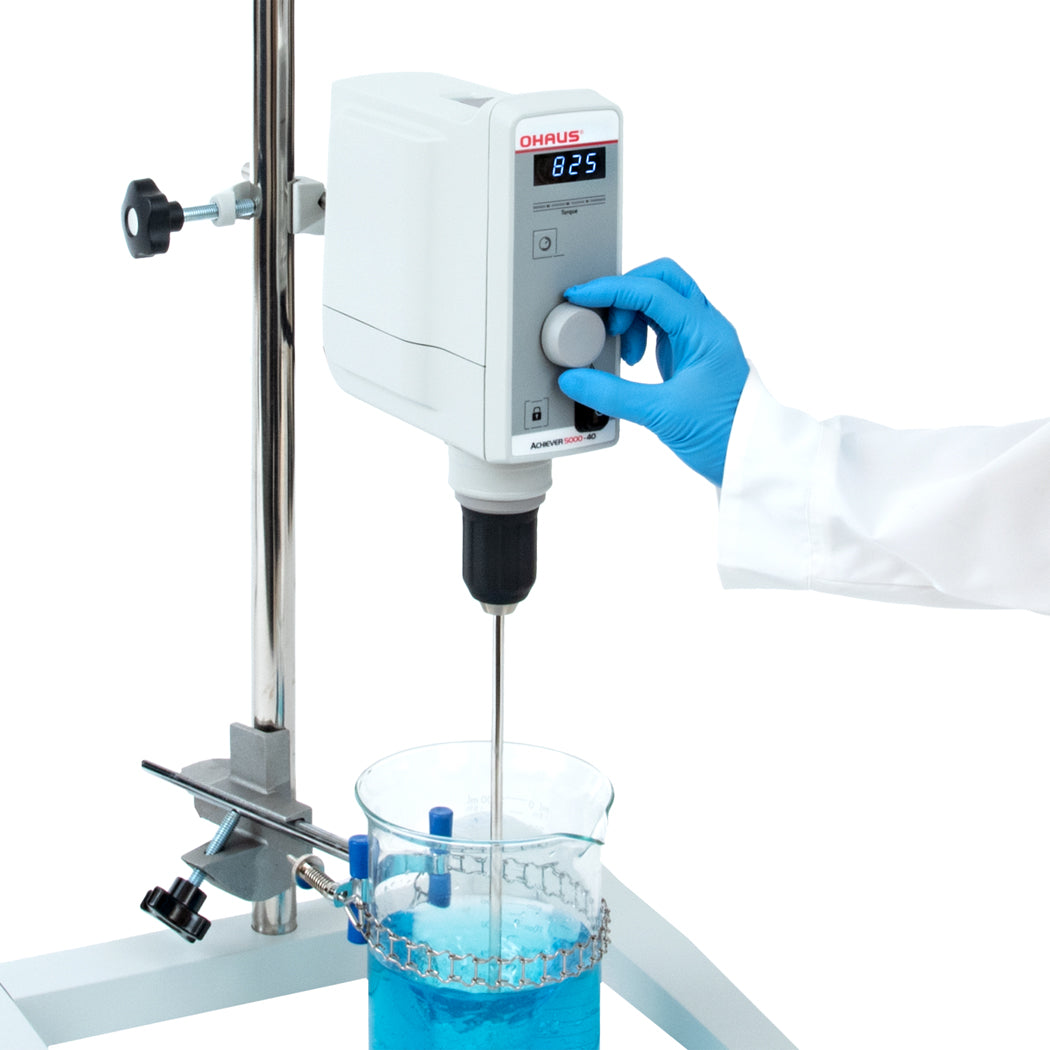

Achiever 5000 Overhead Stirrers e-A51ST100, 115V
Original price $2,555.00 - Original price $2,555.00
$2,555.00 - $2,555.00
Current price $2,555.00
Reliable Overhead Stirrers with Exceptional Performance for Everyday Use
OHAUS Achiever 5000™ Overhead Stirrers are designed for powerful, precise stirring, safety, and simplicity in all applications. The sealed design has an IP54 rating and ensures safe mixing performance even in the most demanding applications. The keyless chuck and software-controlled speed ramping provide easy setup and safe stirring to protect the sample and user.
Powerful mixing and constant speed is assured with the brushless motor and torque compensation technology - delivering accurate, controlled stirring of viscous liquids with quiet operation.
Simplify set up with the Keyless Chuck - no tools required. Change shafts quickly and easily with one-handed operation.
Designed for safety. The lock button prevents accidental speed changes and the motor’s overload sensing technology simply shuts off stirring before an overload condition occurs to protect the sample.
Compact and easy to use. Simple knob control combined with the bright digital display allows for precise setting and monitoring. Customize for your application with over 12 accessories.
Stirring of high viscosity and large sample volumes
Torque tendency 7 Digit LED indicator
Sealed housing with IP54 rating
Speed accuracy of 1 rpm, timer, digital speed control, chuck range 1 to 13 mm, pass through shaft diameter up to 8.5 mm, support stand and clamp required for set up (sold separately)
41°F–104°F, 80% Relative Humidity, non-condensing
Stirring Speed Range 30-1300 rpm
Stirring Volume (H2O) Up To 100 L Maximum Viscosity (cP or mPa's) 70,000 Maximum Torque (Ncm) 100 Speed Gears 1
Speed Accuracy 1 rpm
Speed Control Digital
Chuck Range (Diameter) 1-13 mm
Dimensions (H x L x W) 28.5 x 23.5 x 9.0 cm (11.2 x 9.3 x 3.5 in) Shaft Pass-Through (Diameter) Up To 8.5mm
Ingress Protection IP 54 Net Weight 4.1 Kg Power Supply 115V, 50/60Hz / 230V, 50/60Hz Working Environment 5°C – 40°C, 80%RH, non-condensing Power Input
190W (115V) / 190W (230V) Operating Mode
Operating Conditions 41°F–104°F, 80% Relative Humidity, non-condensing
Country of origin US
