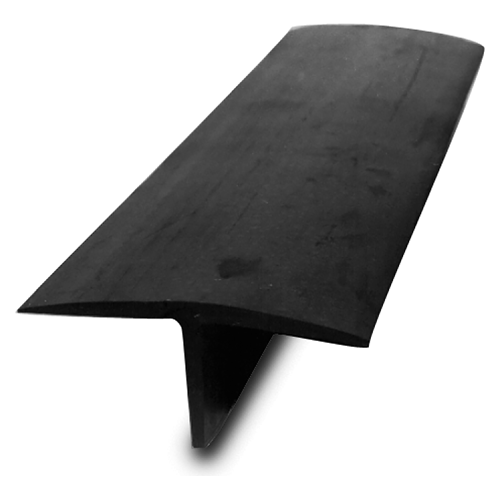

Durable Pit Protection for Heavy-Duty Truck Scale Installations
Our heavy-duty T-Strip and T-Grip Rubber Moldings provide a reliable barrier against debris, gravel, dust, and material spillover. Designed for industrial use, these durable rubber seals are perfect for truck scales, platforms, pits, channels, flooring gaps, equipment housings, and more.
Made from premium SBR (T-Strip) and EPDM (T-Grip) rubber, these moldings deliver exceptional impact resistance, tear strength, UV resistance, and long-term weather protection in the harshest environments.
Available by the foot or in standard pre-cut lengths up to 100 ft (with extended continuous lengths up to 450 ft upon request).
Key Features
-
Prevents debris & spillover from entering pits, channels, load-cell areas, or equipment gaps
-
Heavy-duty construction using industrial-grade rubber for maximum durability
-
T-Strip = SBR rubber for general-purpose sealing in high-traffic applications
-
T-Grip = EPDM rubber for superior UV, ozone & extreme weather resistance
-
Barbed T-Grip design ensures a secure, locked-in fit inside mounting channels
-
Flexible, long-lasting gap sealing for truck scales, industrial floors, machinery & construction projects
-
Available in custom cut lengths – by the foot or standard 10 ft, 11 ft, 70 ft, 80 ft, and 100 ft rolls
-
Engineered to protect structural components by preventing contamination, buildup, and premature wear
Why Choose Liberty Rubber Moldings?
These moldings are engineered to improve performance and extend the lifespan of your installation. By sealing the space between the deck and foundation—or any industrial gap—they block unwanted debris from collecting where it doesn’t belong.
The T-Strip includes a uniform 0.25-inch web, ideal for general sealing.
The T-Grip features a barbed web that locks firmly into channel grooves for maximum retention under repeated loading.
Perfect for:
✔ Truck Scales
✔ Industrial Pits & Trenches
✔ Manufacturing Lines
✔ Heavy Equipment Sealing
✔ Dock & Warehouse Floors
✔ Structural Gap Protection
✔ General Industrial Construction
T-Strip Dimensions
| Part # | Height (H) | Width (W) | Web (W1) | Length |
|---|---|---|---|---|
| 18736 | 2.00 in | 4.50 in | 0.25 in | Sold by the foot |
| 18776 | 2.00 in | 4.50 in | 0.25 in | 10 ft |
| 18797 | 2.00 in | 4.50 in | 0.25 in | 11 ft |
| 18798 | 2.00 in | 4.50 in | 0.25 in | 70 ft |
| 33223 | 2.00 in | 4.50 in | 0.25 in | 80 ft |
| 33224 | 2.00 in | 4.50 in | 0.25 in | 100 ft |
T-Grip Dimensions
| Part # | Height (H) | Width (W) | Web (W1) | Length |
|---|---|---|---|---|
| 18799 | 2.56 in | 5.75 in | 0.22 in | Sold by the foot |
| 18800 | 2.56 in | 5.75 in | 0.22 in | 10 ft |
| 18801 | 2.56 in | 5.75 in | 0.22 in | 11 ft |
| 18802 | 2.56 in | 5.75 in | 0.22 in | 70 ft |
| 33219 | 2.56 in | 5.75 in | 0.22 in | 80 ft |
| 33222 | 2.56 in | 5.75 in | 0.22 in | 100 ft |
Order With Confidence
Liberty’s T-Strip and T-Grip rubber moldings are the trusted choice for industrial sealing and protection. Whether you're installing new equipment or maintaining existing setups, our rubber seals offer long-lasting performance and maximum reliability.
Order by the foot or select from our standard pre-cut lengths to match your exact installation requirements.
