🛠️ Liberty Automatic Pallet-Making System
Model: LS-Semi-Auto-PM-364860 + LS-Notch-Semi-Auto-364860
High-Output | Semi-Automatic | U.S. Standard | Built for Scale
🧩 Product Overview:

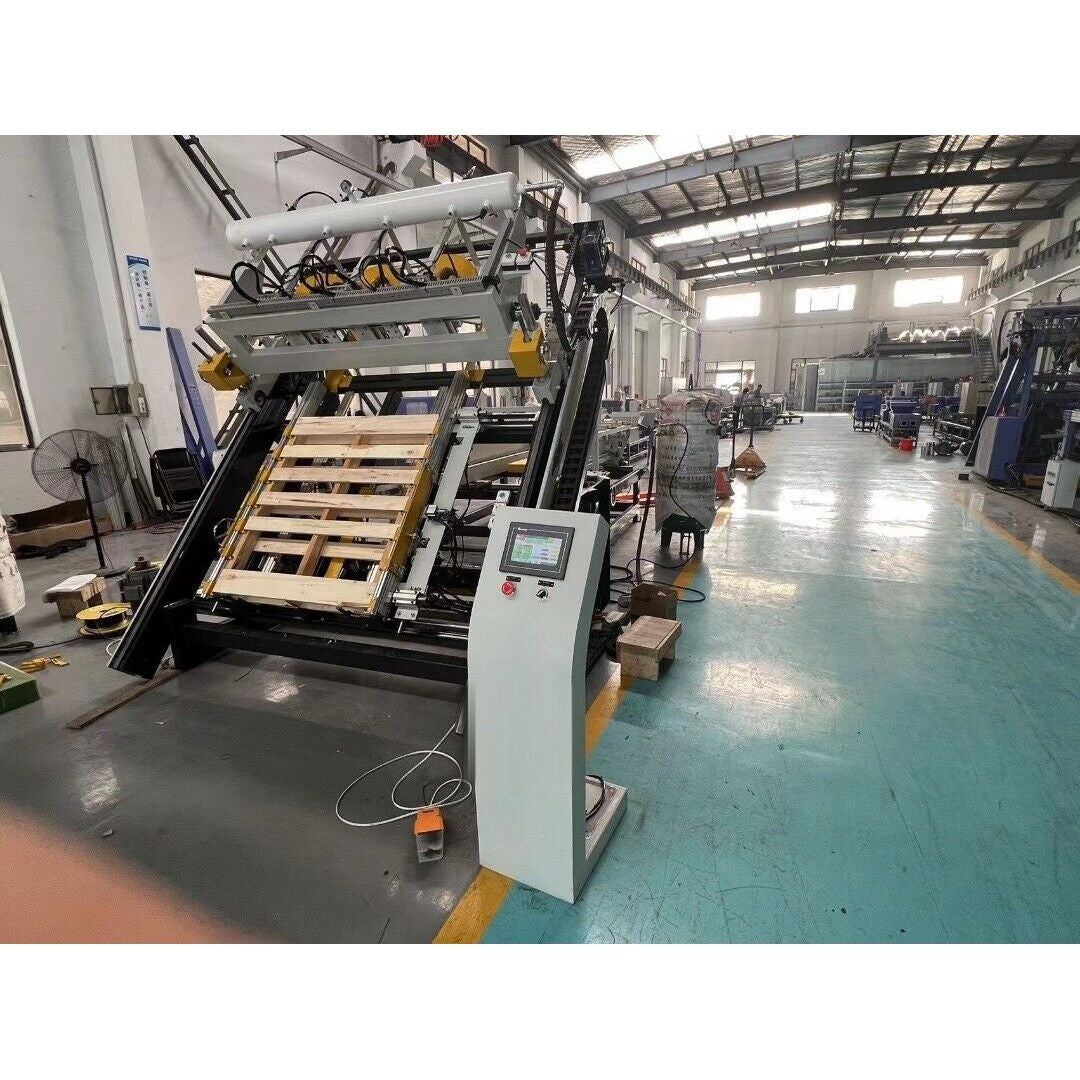

Liberty’s automatic pallet-making machine is engineered to bring efficiency and precision to high-output pallet production. With the ability to produce up to 400 pallets per day (60–80 per hour), this semi-automatic system is a powerhouse solution for businesses that require speed, reliability, and consistency in pallet manufacturing.
Equipped with a 3-gun BOSTITCH nailing system powered by air pressure and servo control, the machine secures each nail evenly across boards with pneumatic precision. The integrated jig system holds boards and stringers firmly in place, providing accurate alignment and simplifying assembly. Operators build the top face of the pallet, then flip it to complete the back with minimal effort.
Once the pallet is built, it transfers automatically to the stacker unit, which neatly organizes pallets and feeds them to the roller conveyor for quick handling and logistics.
To expand functionality, the package includes a Double Notching System designed to create 4-way stringer pallets. This allows manufacturers to produce standard sizes like 36”×36”, 48”×40”, and 48”×60” with flexibility for custom configurations.
📦 What’s Included:
-
LS-Semi-Auto-PM-364860: Semi-Automatic Pallet Nailing Machine
-
LS-Notch-Semi-Auto-364860: Double Notching System
-
Automatic pallet stacker + conveyor system
-
Free Shipping (USA)
-
5-Year Warranty
📊 Specifications at a Glance:
🔩 Pallet Nailing Machine (LS-Semi-Auto-PM-364860)
| Feature | Metric | Imperial |
|---|---|---|
| Power Supply | 380V, 3-phase, 1.5kW (customizable) | ~480V, 3-phase, ~2 HP |
| Operation Mode | Touch screen + Pneumatic control | Same |
| Working Size | 800×800 mm to 1300×1300 mm | 31.5" × 31.5" to 51.2" × 51.2" |
| Air Pressure | 0.8 MPa | 116 psi |
| Air Tank Volume | 0.2 m³ | 7.1 ft³ |
| Nailing Guns | 3 × BOSTITCH | — |
| Nailing Speed | 7 nails/second | — |
| Output | 60–80 pallets/hour | Up to 400 pallets/day |
| Nail Size | ≤80 mm | ≤3.15 inches |
| Machine Weight | 2000 kg | 4,409 lbs |
| Host Machine Dimensions | 2000×2800×2600 mm | 78.7" × 110.2" × 102.4" |
| Stacking Machine Dimensions | 2600×1900×1600 mm | 102.4" × 74.8" × 63" |
🔧 Stringer Double Notching Machine (LS-Notch-Semi-Auto-364860)
| Feature | Metric | Imperial |
|---|---|---|
| Power | 30 kW | ~40 HP |
| Blade Material | Alloy | Same |
| Capacity | 1800 pieces/hour | — |
| Max Stringer Length | ≤1300 mm | ≤51.2 inches |
| Stringer Width | 90 mm | 3.54 inches |
| Stringer Thickness | 40–60 mm | 1.57"–2.36 inches |
| Notch Depth | 45 mm | 1.77 inches |
| Notch Width | 230 mm | 9.06 inches |
| Machine Size | 2300×1300×1300 mm | 90.6" × 51.2" × 51.2" |
| Machine Weight | 1000 kg | 2,205 lbs |
| Working Type | Continuous feed, dual groove | Same |
| Customization | Slot shapes & sizes configurable | Same |
🚀 Why Choose Liberty’s Pallet Automation System?
-
✅ Builds standard U.S. pallets with speed and precision
-
✅ 3-Gun pneumatic nailing system for consistency
-
✅ Automatic stacking and roller discharge
-
✅ Notching unit included for true 4-way pallet production
-
✅ Supports custom pallet sizes for diverse customers
-
✅ Free shipping across the U.S.
Liberty Scales: 5-year warranty, free shipping to the 48 contiguous states, and support 7 days a week. Questions? Call (661) 888-1919 or email sales@libertyscales.com.
