Are you struggling to maintain cleanliness and precision in your weighing processes?

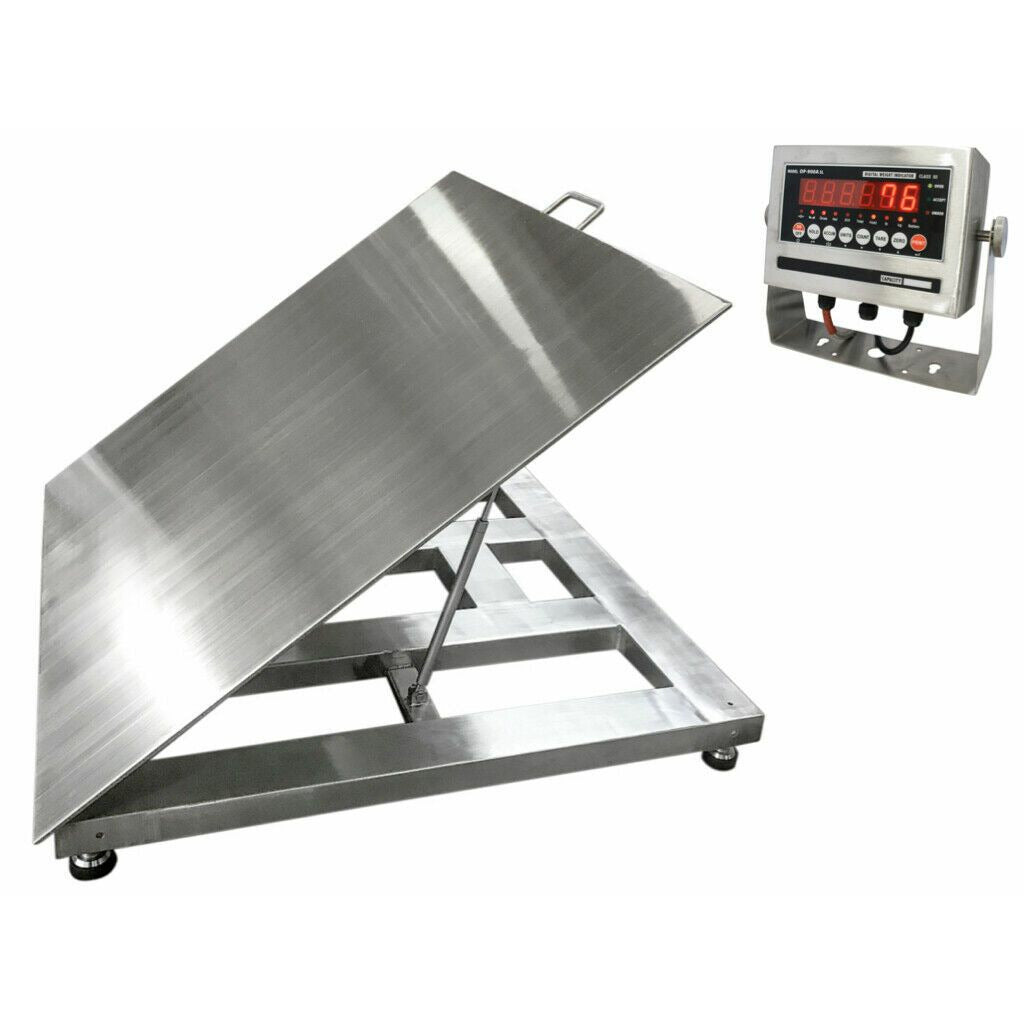

The Liberty LS-800-SS-LT NTEP Lift Up Washdown Floor Scale is designed to tackle these challenges head-on, ensuring that your operations remain efficient and hygienic. With its heavy-duty stainless steel construction and NTEP certification, this scale provides a reliable solution for pit and above-ground use, making it a perfect fit for various industries prioritizing accuracy and cleanliness.

Available Sizes:

• 2'x2' (24" x 24")
• 3'x3' (24" x 24")
• 4'x4' (48" x 48")
• 5'x5' (60" x 60")
• 6'x6' (72" x 72")
• 7'x7' (84" x 84")

Key Benefits:

• Durable Construction: Crafted from heavy-duty stainless steel, ensuring longevity and resistance to wear in demanding environments.
• Lift-Up Diamond-Plated Top Platform: Simplifies cleaning, allowing for hassle-free maintenance and adherence to hygiene standards.
• High Capacity and Accuracy: Weigh capacities from 1000 lbs to 10000 lbs precisely, suitable for various industrial applications.
• Surface Model Choices: Select from smooth or diamond plate surface models to match your industrial requirements.
• NTEP Certified Guarantees legal compliance and precision, which are crucial for businesses that rely on accurate measurements for trade.
• Versatile Installation: It is designed for pit and above-ground use and offers flexibility in setup to fit your workspace needs.
• User-Friendly Features: It comes with an NEMA 4 washdown indicator, rechargeable battery option, and built-in RS-232 communication port for enhanced usability and connectivity.
• Factory Calibrated: Ready to use out of the box, ensuring you get accurate readings immediately.
• Reliable Power: It comes with an LS-7510-SS Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.
• NTEP Certified (Legal for trade): COC # 22-056

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; optional battery available.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
• Additional Features: Power saving mode, automatic date, and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the LS-800-Series Floor Scale

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Pit-Frame Installation: Choose between a permanent, in-ground pit frame installation or versatile industrial portable pit frames for flexible placement.

• Data Collection Software: Utilize our specialized software to track and manage weight records efficiently.

• Ramp Access: Implement optional ramps to facilitate simple and safe loading and unloading using carts or pallet jacks.

• Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our LS-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.

• Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.

• Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.

Custom Manufacturing

If you require custom-made scales, Liberty Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminum.

By investing in the Liberty LS-800-SS-LT NTEP Lift Up Washdown Floor Scale, you’ll experience a sense of relief knowing that your weighing processes are efficient, clean, and compliant. Enjoy the peace of mind that comes from using a durable, high-quality scale tailored to meet the rigorous demands of your industry. Don't just weigh your products—elevate your business standards today!

Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.

Attention:

If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.

Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.

Liberty Scales: 5-year warranty, free shipping to the 48 contiguous states, and support 7 days a week. Questions? Call (661) 888-1919 or email sales@libertyscales.com.
