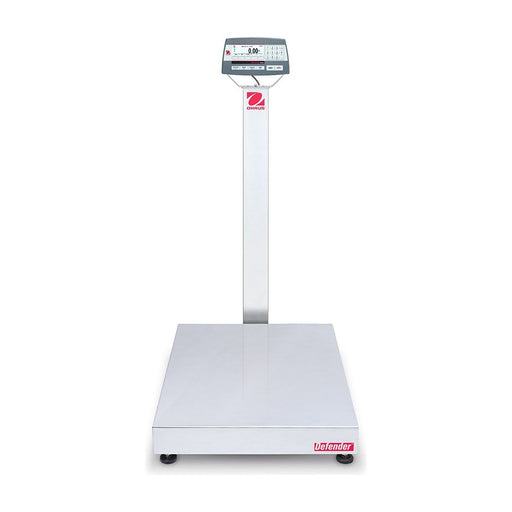

Defender™ 5000 - Plastic Indicator
18 modelsNTEP optionsFree shippingOhaus warranty + Liberty support
from $1,994.40pick a model below
Choose your model18 models on Liberty
Call (661) 888-1919 for stock and lead time.
Models and prices
Liberty price on every model. Same item numbers as ohaus.com.
| Model | Item | Capacity | Readability | Platform / pan | Legal for trade | Liberty price | |
|---|---|---|---|---|---|---|---|
| 24"x18" Bench Scale | 30461640 | 500 lb | 0.02 lb | $2,568.60 | View | ||
| 14"x12" Bench Scale | 30461635 | 100 lb | 0.005 lb | $1,994.40 | View | ||
| 14"x12" Bench Scale | 30461634 | 50 lb | 0.002 lb | $1,994.40 | View | ||
| 12"x12" Bench Scale | 30461631 | 50 lb | 0.002 lb | $1,994.40 | View | ||
| D52P125RQL2 | 30461637 | 250 lb | 0.01 lb | 18 in x 18 in | NTEP Certified, Measurement Canada Approved | $2,433.60 | View |
| D52P50RQL2 | 30461636 | 100 lb | 0.005 lb | 18 in x 18 in | NTEP Certified, Measurement Canada Approved | $2,433.60 | View |
| D52P500RTV3 | 30461647 | 1,000 lb | 0.05 lb | 31.5 in x 23.6 in | NTEP Certified, Measurement Canada Approved | $3,533.40 | View |
| D52P250RQV3 | 30461643 | 500 lb | 0.02 lb | 24 in x 24 in | NTEP Certified, Measurement Canada Approved | $2,949.30 | View |
| D52P125RTX2 | 30461639 | 250 lb | 0.01 lb | 24 in x 18 in | NTEP Certified, Measurement Canada Approved | $2,568.60 | View |
| D52P12RQR1 | 30461630 | 25 lb | 0.001 lb | 12 in x 12 in | NTEP Certified, Measurement Canada Approved | $1,994.40 | View |
| D52P250RTV3 | 30461646 | 500 lb | 0.02 lb | 31.5 in x 23.6 in | NTEP Certified, Measurement Canada Approved | $3,533.40 | View |
| D52P125RTV3 | 30461645 | 250 lb | 0.01 lb | 31.5 in x 23.6 in | NTEP Certified, Measurement Canada Approved | $3,533.40 | View |
| D52P500RQV3 | 30461644 | 1,000 lb | 0.05 lb | 24 in x 24 in | NTEP Certified, Measurement Canada Approved | $2,949.30 | View |
| D52P125RQV3 | 30461642 | 250 lb | 0.01 lb | 24 in x 24 in | NTEP Certified, Measurement Canada Approved | $2,949.30 | View |
| D52P50RQV3 | 30461641 | 100 lb | 0.005 lb | 24 in x 24 in | NTEP Certified, Measurement Canada Approved | $2,949.30 | View |
| D52P50RTX2 | 30461638 | 100 lb | 0.005 lb | 24 in x 18 in | NTEP Certified, Measurement Canada Approved | $2,568.60 | View |
| D52P12RTR1 | 30461633 | 25 lb | 0.001 lb | 14 in x 12 in | NTEP Certified, Measurement Canada Approved | $1,994.40 | View |
| D52P50RQR1 | 30461632 | 100 lb | 0.005 lb | 12 in x 12 in | NTEP Certified, Measurement Canada Approved | $1,994.40 | View |
Details (from the 24"x18" Bench Scale listing; each model page carries its own)
-
OverviewMultifunctional Bench Scale for Standard Industrial Applications
- User-friendly model with an easy-to-use keypad, large backlit display and plain text on-screen prompts which guide you through operation.
- Durable construction with a stainless steel platform, sand gray powder-coated steel frame & aluminum load cell. Defender meets NTEP/Measurement Canada or OIML/EC type approvals (depending on region).
- Features common industrial modes and supports a 50,000-item library with 1,000 user profiles for easy data management. Includes GMP/GLP with time/date for result traceability.
- This item replaces the discontinued D71P150HX2
Applications: Parts Counting with APW optimization, Checkweighing or Checkcounting, Percent Weighing, and Dynamic Weighing or Display Hold.
Display: Dot matrix LCD with white LED backlight, 256 x 80 pixels, with on-screen checkweighing display.
Construction: 304-grade stainless steel platform with sand gray powder-coated steel frame, aluminum load cell, non-slip adjustable rubber feet.
Operation: 100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (optional).
Communication: Standard RS232, MicroSD Card included; Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB, Analog Output, or 2 In/4 Out Digital I/O.
Design Features: Up to 25,000d/5,000e NTEP Class III certified and Measurement Canada Class III approved legal-for-trade, GMP/GLP output with time/date, EasyConnect connector allows fast set-up.
-
Maximum Capacity 500.0 lb Maximum Capacity 250.0 kg Readability 10.0 g (0.02 lb) Readability (Certified) 50.0 g (0.1 lb) Platform Size (Length) 610.0 mm (24.0 in) Platform Size (Width) 457.0 mm (18.0 in) Legal for Trade Measurement Canada Approved;
NTEP CertifiedPower AC Power (Included);
Rechargeable Battery (Not Included)Platform Construction Stainless Steel Tare Range To capacity by subtraction Net Weight 27.0 kg (59.5 lb) Dimensions (Height) 903.0 mm (35.6 in) Working Environment 14°F – 104°F, 80%RH, non-condensing Display Dot matrix LCD with white LED backlight Dimensions (Width) 457.0 mm (18.0 in) Dimensions (Length) 775.0 mm (30.6 in) Second Scale Input Not Applicable Test Weight 250kg, OIML M1 or ASTM CL F Outputs 3 In/4 Out digital I/O;
4 - 20mABattery Life 20 Hours with Rechargeable Battery Protection Rating Not Applicable Working Environment -10°C – 40°C, 80%RH, non-condensing
