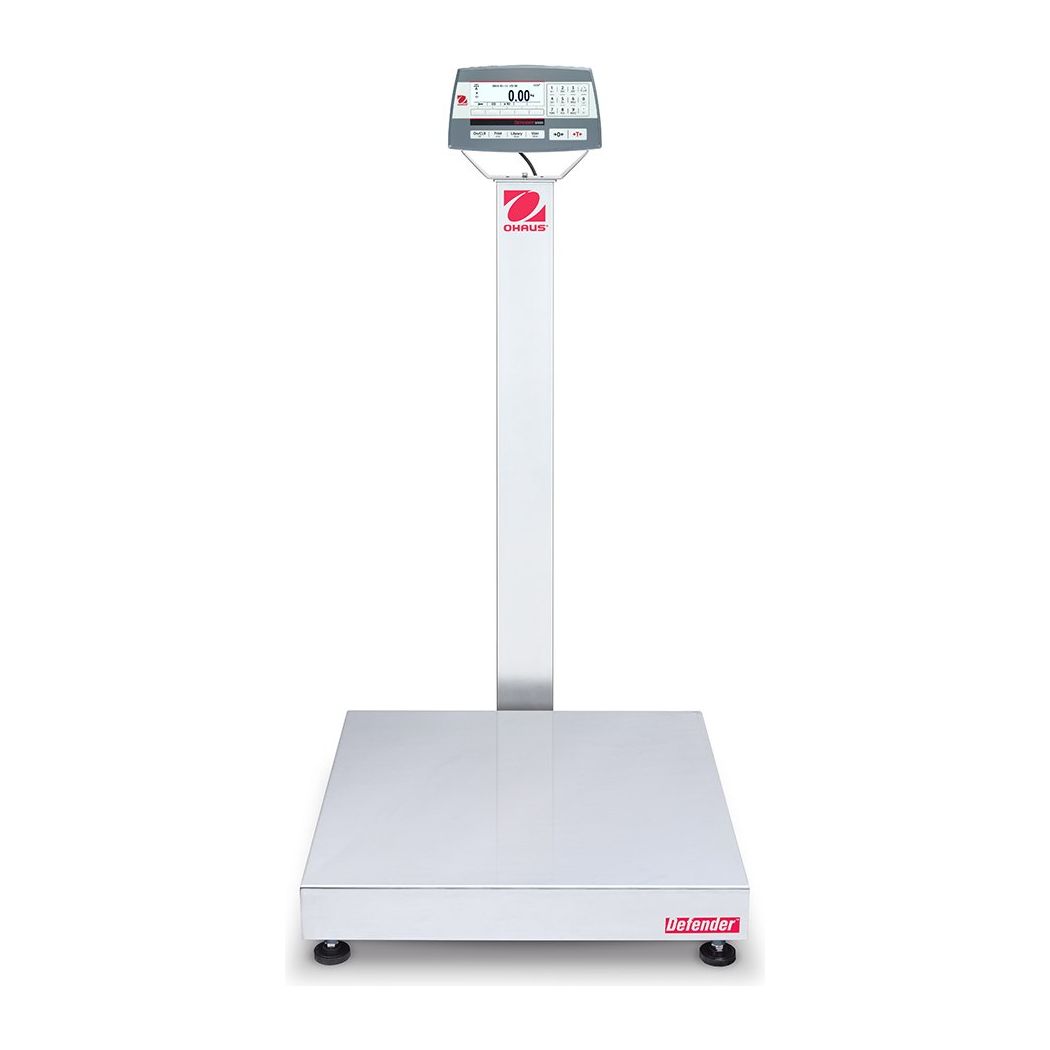

Ohaus 24"x24" Bench Scale, D52P125RQV3 250lbx125kg
OverviewMultifunctional Bench Scale for Standard Industrial Applications
- User-friendly model with an easy-to-use keypad, large backlit display and plain text on-screen prompts which guide you through operation.
- Durable construction with a stainless steel platform, sand gray powder-coated steel frame & aluminum load cell. Defender meets NTEP/Measurement Canada or OIML/EC type approvals (depending on region).
- Features common industrial modes and supports a 50,000-item library with 1,000 user profiles for easy data management. Includes GMP/GLP with time/date for result traceability.
Applications: Parts Counting with APW optimization, Checkweighing or Checkcounting, Percent Weighing, and Dynamic Weighing or Display Hold.
Display: Dot matrix LCD with white LED backlight, 256 x 80 pixels, with on-screen checkweighing display.
Construction: Stainless steel platform, powder-coated steel base frame and column, aluminum loadcell and ABS plastic indicator.
Operation: 100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (optional).
Communication: Standard RS232, MicroSD Card included; Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB, Analog Output, or 2 In/4 Out Digital I/O.
Design Features: Up to 25,000d/5,000e NTEP Class III certified and Measurement Canada Class III approved legal-for-trade, GMP/GLP output with time/date, EasyConnect connector allows fast set-up.
Maximum Capacity 250.0 lb Maximum Capacity 125.0 kg Readability 5.0 g (0.01 lb) Readability (Certified) 20.0 g (0.05 lb) Platform Size (Length) 610.0 mm (24.0 in) Platform Size (Width) 610.0 mm (24.0 in) Legal for Trade Measurement Canada Approved;
Power AC Power (Included);
Rechargeable Battery (Not Included)
Platform Construction Stainless Steel Tare Range To capacity by subtraction Net Weight 39.0 kg (86 lb) Dimensions (Height) 1203.0 mm (47.4 in) Working Environment 14°F – 104°F, 80%RH, non-condensing Display Dot matrix LCD with white LED backlight Dimensions (Width) 610.0 mm (24.0 in) Dimensions (Length) 773.0 mm (30.4 in) Second Scale Input Not Applicable Test Weight 25kg, OIML M1 or ASTM CL F Outputs 3 In/4 Out digital I/O;
4 - 20mA
Battery Life 20 Hours with Rechargeable Battery Protection Rating Not Applicable Working Environment -10°C – 40°C, 80%RH, non-condensing
