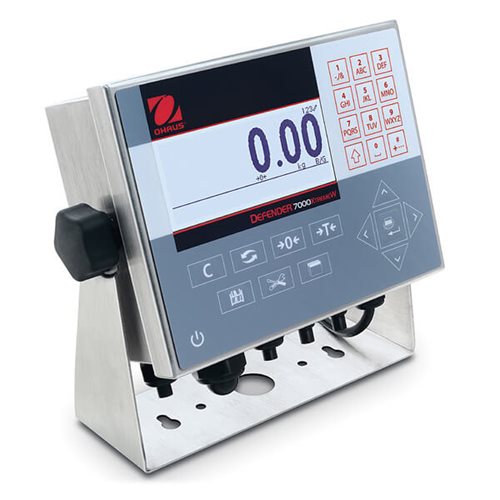

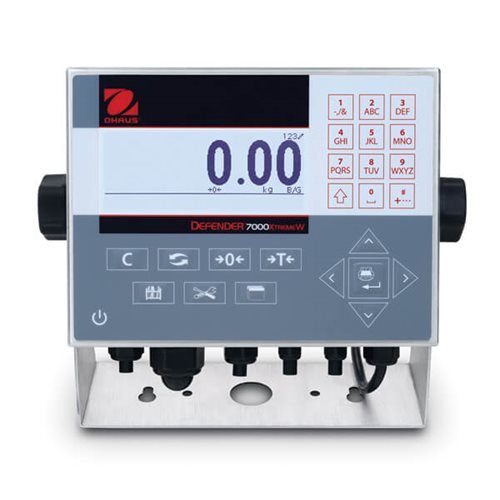

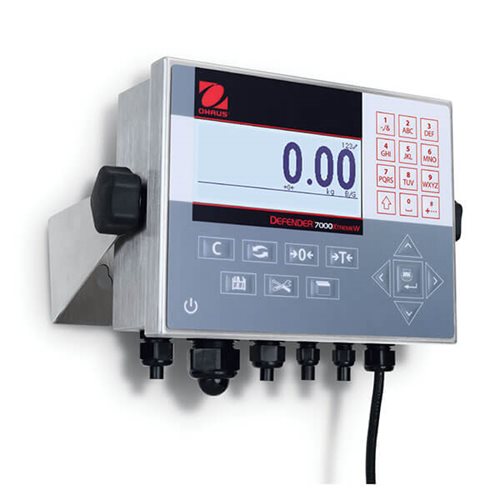

Ohaus Indicator T72XW, Legal For Trade, Resolution 50,000 x 10,000
graphic LCD with white backlight, 240 x 96 pixels
lights with selectable operation and audible signal settings, sealed front panel, 5 operating languages (English, Spanish, French, German and Italian), selectable environmental and auto-print settings, stability and overload/underload indicators
7000 Series T72XW Indicator Data Sheet DE 80774852
7000 Series T72XW Indicator Data Sheet ES 80774849
7000 Series T72XW Indicator Data Sheet FR 80774850
7000 Series T72XW Indicator Data Sheet IT 80774851
7000 Series T72XW Indicator Data Sheet_AP_80774804
7000 Series T72XW Indicator Data Sheet_EU_80774777
7000 Series T72XW Indicator Data Sheet_US_80774778
30308414_B_EU DoC_T72_2016-04-20
30308414_C_EU DoC_T72XW_2017-04-19
T72XW_EC Test Cert TC8509 Rev 0
T72XW_EC Test Cert TC8509 Rev 1
T72XW_MC AM-5943
T72XW_MC MAL-M180
NTEP CC 14-049 (T72XW)
OIML Cert R76-2006-NL1-14.04 (T72XW)
T72XW USB MAC Driver
T72XW USB Win Driver
Instruction Manual T72XW DE 30131339D
Instruction Manual T72XW EN 30131338D
Instruction Manual T72XW ES 30131372D
Instruction Manual T72XW FR 30131371D
Instruction Manual T72XW IT 30131370D
Options Manual T72XW IT 30220562A
User Guide T72XW 10 Lang 30283457 A
Ohaus Indicator T72XW, Legal For Trade, Resolution 50,000 x 10,000
Availability:
In Stock
- Vendor:Libertyscales
- Category: All, Best Selling Products, Indicators, Newest Products, Ohaus Scales
$1,114.00
Overview
The OHAUS T72XW indicator provides the flexibility, performance and operation necessary for specific applications with connectivity and data output capabilities - including vehicle weighing, over/under , animal weighing and counting. The 7000 series indicator has multiple functions, intuitive software, multiple connectivity options, and the durability to stand up to the wear-and-tear in industrial settings.
Applications
Weighing, Parts Counting, Checkweighing, Animal/Dynamic Weighing, Vehicle Weighing
Display
Operation
AC power (included)
Communication
Easy access communication RS232 (included), USB, Ethernet and second RS232 or RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
Construction
IP66/NEMA 4X stainless steel housing and mounting bracket
Design Features
Resolution | 50,000 |
Resolution (Certified) | 10,000 |
Battery Life | Not Applicable |
Outputs | 3 In/4 Out digital I/O |
Second Scale Input | Not Applicable |
Protection Rating | IP66 |
Communication | RS232 (Included |
Dimensions (HxLxW) | 9.1 in x 3.4 in x 11.1 in (232 mm x 86 mm x 283 mm) |
Display | LCD |
Legal for Trade | EC Type ApprovedMeasurement Canada ApprovedNTEP Certified |
Net Weight | 6.6 lb (3 kg) |
Power | AC Power (Included) |
Protection Rating | IP66 |
Tare Range | To capacity by subtraction |
Units of Measurement |
|
Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) |







Agency Approval Certificates
CE Declaration of Conformity


EC Type - Approval Certificate


Measurement Canada


NTEP

OIML R76 Certificate of Conformity

Drivers


Instruction Manuals







No Options Available
