Are you searching for a weighing solution that is both versatile and robust for your diverse industrial needs?

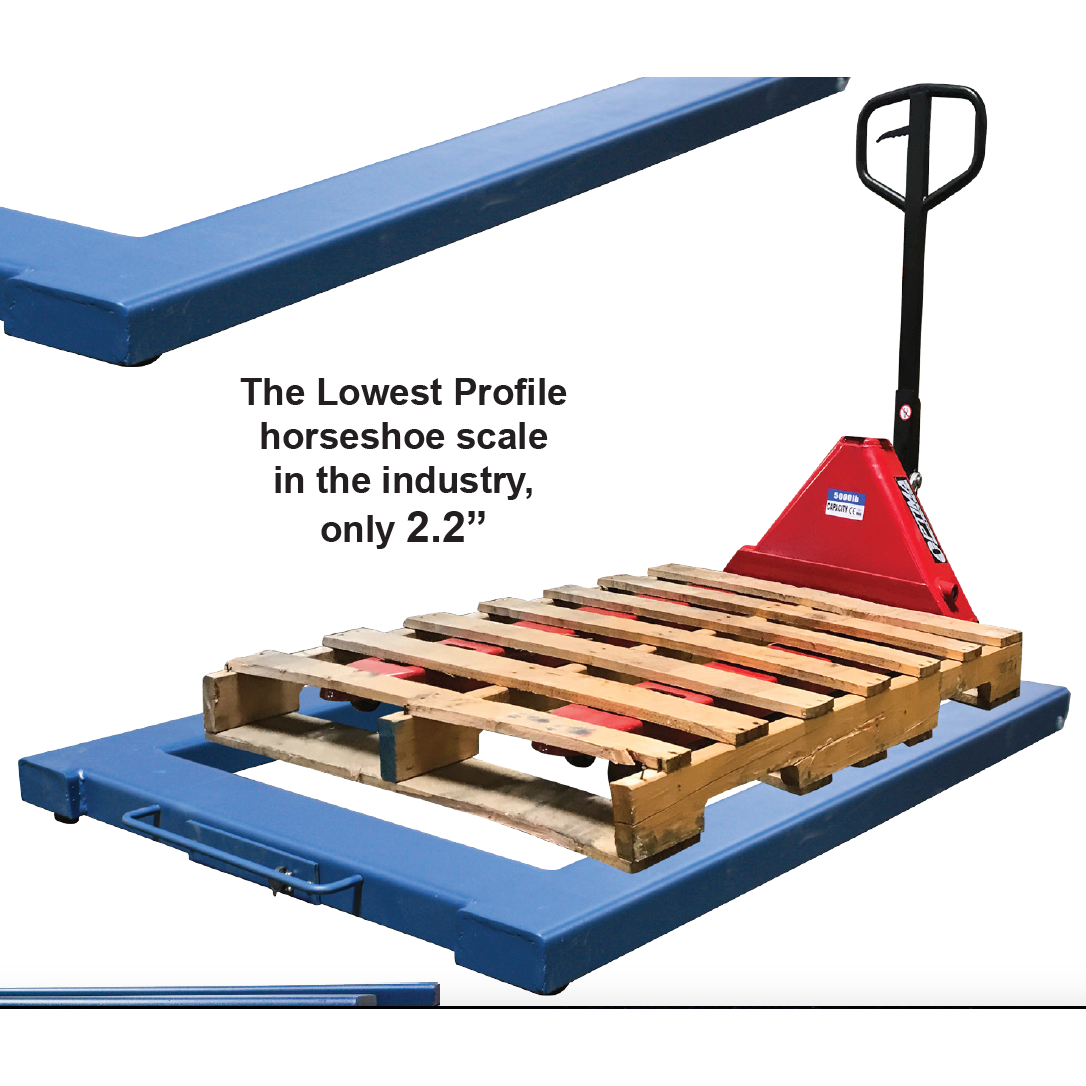

Look no further than the Liberty LS-932 Portable U-Beam Pallet Scale. This scale is expertly crafted from heavy-duty carbon steel and designed to offer precise weight measurements in various industrial applications. Whether it's for weighing animal cages, silos, milk tanks, small platforms, or storage containers, this scale ensures accuracy and ease, making it an indispensable tool for industries that demand reliability and flexibility.

Key Benefits:

• Portability and Convenience: Thanks to its integrated wheels and handles, this scale can be easily relocated to where you need it most.
• Durability: Constructed from carbon steel, this scale withstands harsh environments and heavy use, ensuring longevity.
• High Precision: This model features an advanced indicator with lb/kg selectable options, auto-hold functionality, and a 1 lb accuracy, allowing for precise measurements up to 5000 lbs.
• User-Friendly Design: Factory-calibrated for immediate use, with overload protection to maintain accuracy and extend the scale’s life.
• Versatile Use: Ideal dimensions (50” L x 40” W outer; 45”L x 30” W inner) for accommodating various items and containers.
• Reliable Power: It comes with an LS-7510-SS-C Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; optional battery available.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions.
• Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the LS-932 Portable U-Beam Pallet Scale

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Data Collection Software: Utilize our specialized software to track and manage weight records efficiently.

• Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our LS-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.


Imagine the ease and efficiency of having a reliable and accurate weighing system at your fingertips. With the Liberty LS-932 Portable U-Beam Pallet Scale, you're not just solving a measurement challenge but investing in a seamless operation that enhances productivity and accuracy. Get ready to experience peace of mind by knowing that every measure is precise and every operation runs smoothly. Boost your business’s operational efficiency today with this exceptional scale.

Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.

Liberty Scales: 5-year warranty, free shipping to the 48 contiguous states, and support 7 days a week. Questions? Call (661) 888-1919 or email sales@libertyscales.com.
