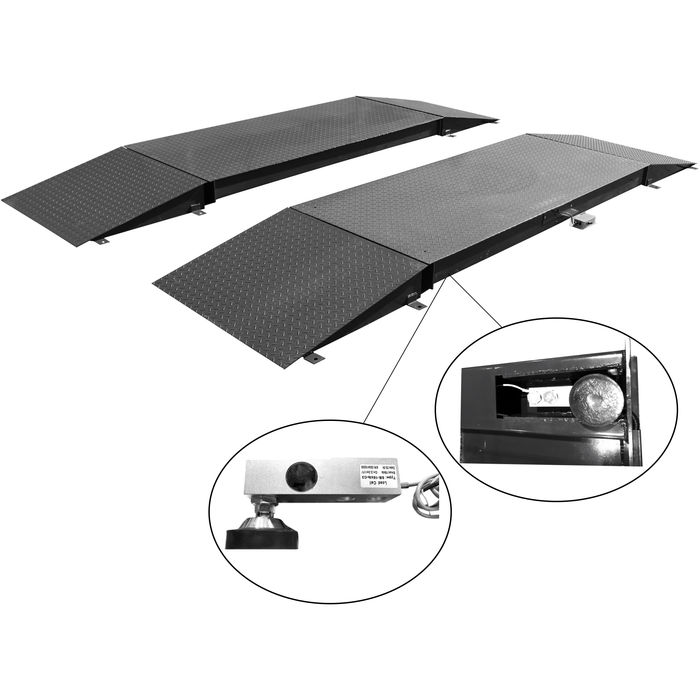

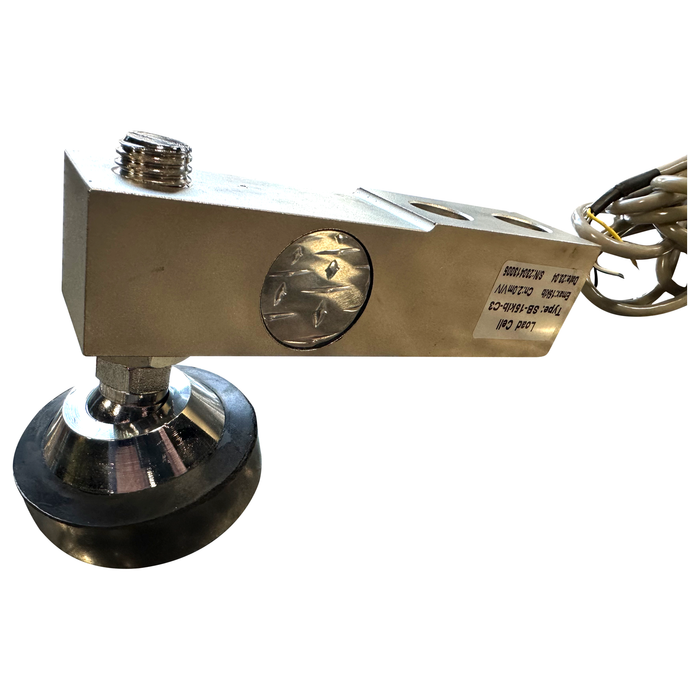

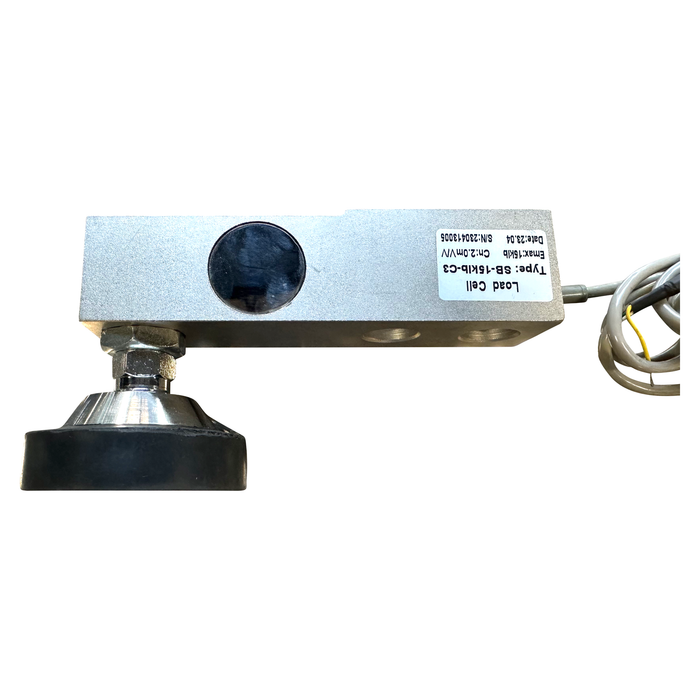

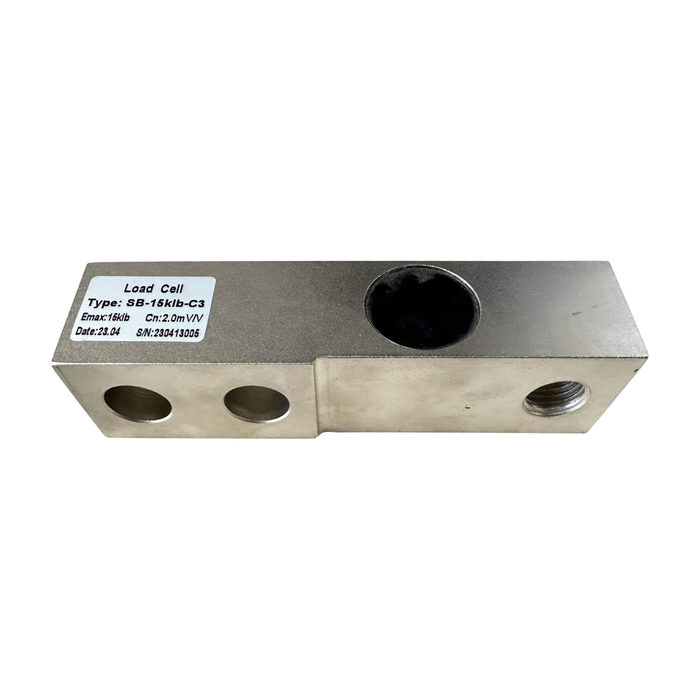

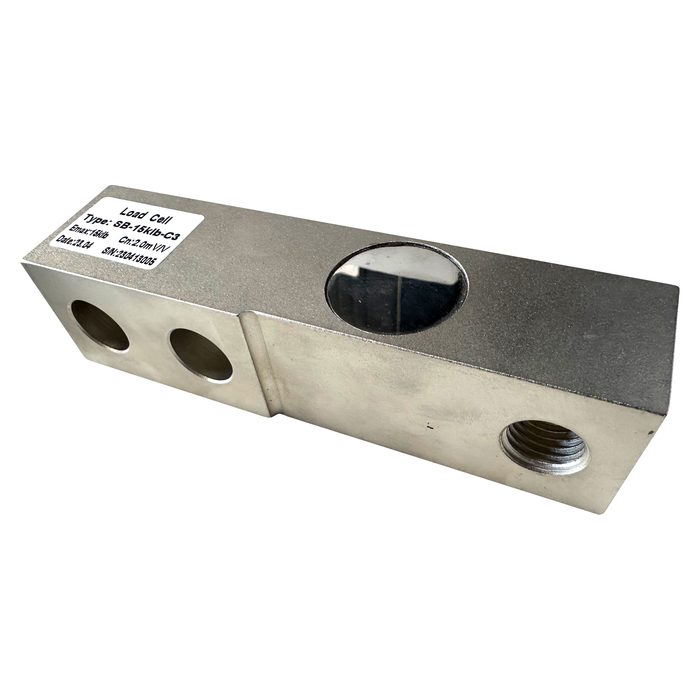

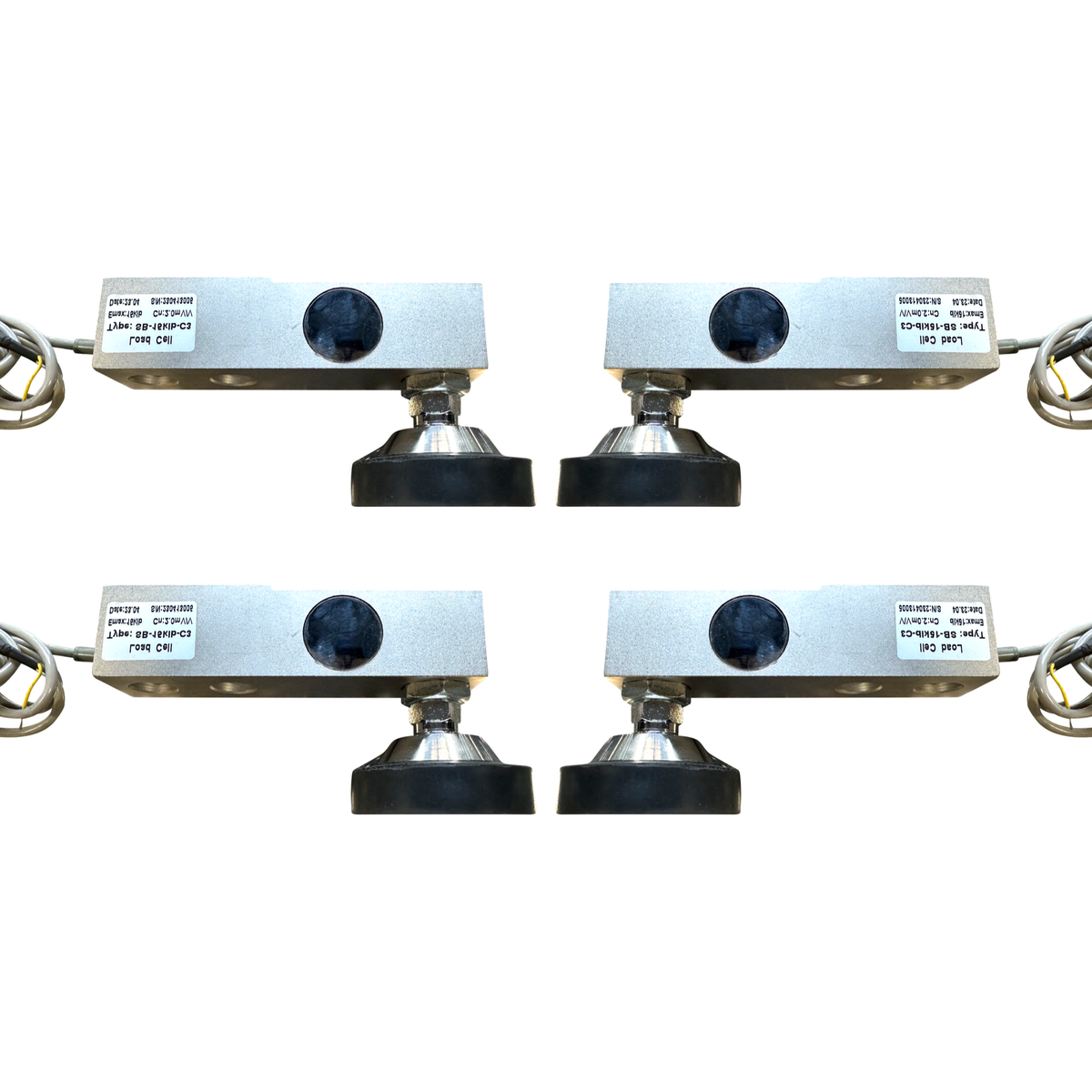

The Liberty LS-SB-15klb-C3 shear beam load cell is a high-capacity solution engineered for precision and durability, offering a 7.5-ton (15,000 lbs) capacity. This load cell is ideal for industrial floor scales, axle scales, and other applications requiring heavy-duty weight measurement.

Key Features & Specifications:

• Capacity: 7.5 tons / 15,000 lbs
• Accuracy Class: C3
• Rated Output: 2.0 ± 0.002 mV/V
• Total Error: ±0.02% F.S
• Creep (30 minutes): ±0.02% F.S
• Input Resistance: 385 ± 10 Ω
• Output Resistance: 351 ± 2 Ω
• Operating Temperature: -10°C to +40°C
• Safe Overload: 150% F.S
• Destructive Load: 200% F.S
• Excitation Voltage: Recommended 4–12 VDC (Max: 15 VDC)
• Construction: Alloy Steel with IP67 protection

Wiring Diagram (Color Coding):

• Excitation + (EXC+): Red
• Excitation – (EXC–): Black
• Signal + (SIG+): Green
• Signal – (SIG–): White

Cable Details:

• Length: 2.5–5 m
• Type: 4-wire with shield

Designed for maximum precision, the LS-SB-15klb-C3 is built to handle higher weights with ease, ensuring reliable performance in demanding industrial environments. Its alloy steel construction and IP67 rating provide durability and protection against harsh conditions, making it a trusted choice for high-capacity load measurement.
