LS-700 · general purpose
Liberty LS-700-4X5 Heavy Duty General Purpose Floor Scale
4×5 ft1,000 to 20,000 lb
from $1,049.00to $1,749.00 · free shipping
Specifications
| Model | LS-900-4x5 |
|---|---|
| Platform | 4×5 ft |
| Capacity × readability | Capacity |
| Load cells | Four shear-beam load cells |
| Indicator | LS-7510 with cable and power supply (included) |
| Overload protection | 200% of capacity |
| Feet | Ball-joint leveling feet |
| Warranty | 5-year Liberty limited warranty |
What's in the box
- Platform, factory calibrated
- LS-7510 indicator, cable and power supply
- Four ball-joint feet
- Quick-start guide
Description
The LS-900-4x5 is Liberty's USA-made, legal-for-trade floor scale: the LS-900 platform, 48 in x 60 in, fabricated in the United States, with the LS-7510 NTEP indicator. The other sizes are one click away in step 1.
What you get

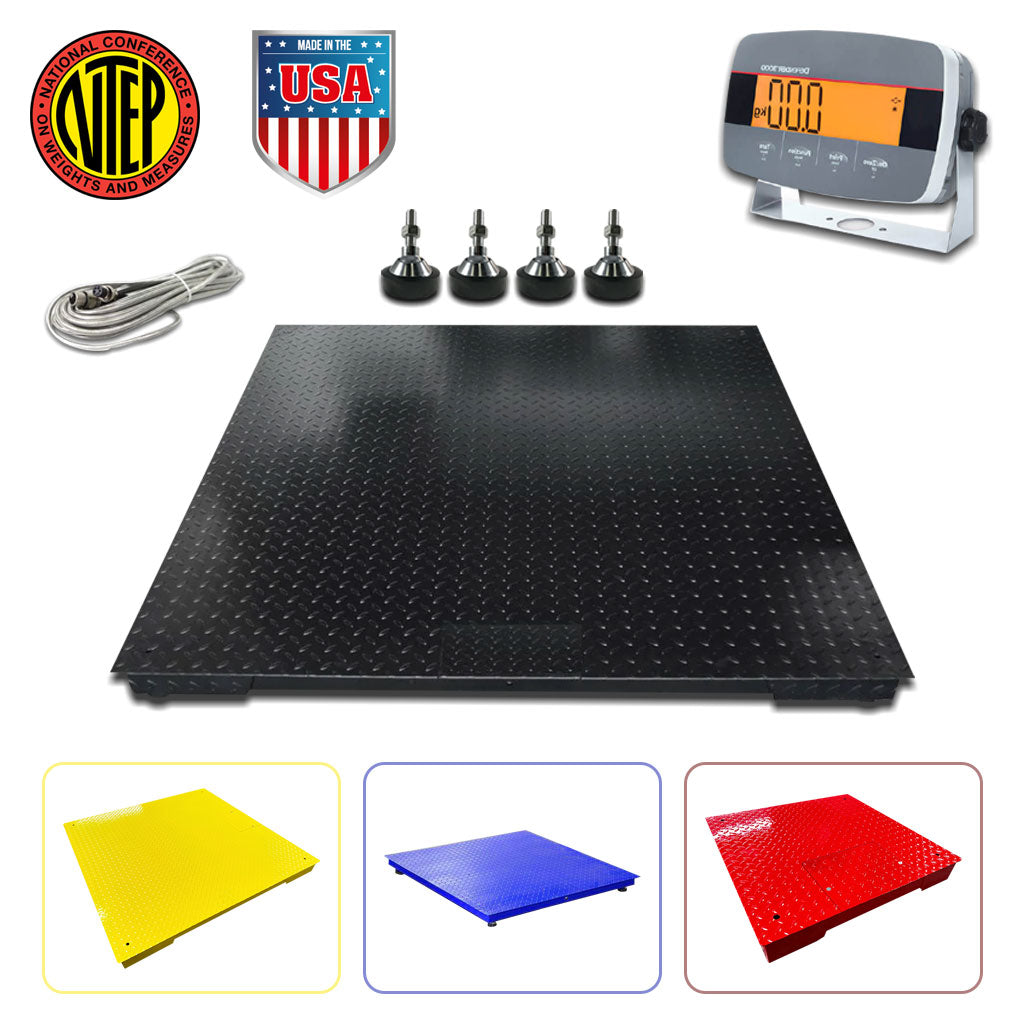

- Platform: 4 ft x 5 ft (48 in x 60 in), welded steel frame with a diamond tread plate top, made in the USA; ball-joint leveling feet.
- Capacity and readability: 1,000 lb x 0.2 lb; 2,500 lb x 0.5 lb; 5,000 lb x 1 lb; 10,000 lb x 2 lb; 20,000 lb x 5 lb. Pick the lowest capacity that covers your heaviest load plus the pallet.
- Load cells: four alloy steel shear-beam load cells, 200% overload protection, 20 ft shielded cable to the indicator.
- Indicator: LS-7510 NTEP indicator with a 6-digit 1 in display; lb and kg; gross, tare and zero; hold; parts counting; accumulation; RS-232 port for a printer or scoreboard; AC adapter included, rechargeable battery optional.
- Certification: NTEP certified, legal for trade. Your local weights-and-measures office does the placing-in-service check for commercial use.
In the box
- Platform, factory calibrated
- LS-7510 indicator with cable and power supply
- Four ball-joint leveling feet
- Quick-start guide
Options
LS-750 ramp (one side, or two for drive-through), LS-403-HD indicator stand, LS-25 printer, LS-910 scoreboard, LS-PL-S data software; stainless steel, touch-screen or explosion-proof indicator upgrades; pit frame for a flush installation.
Liberty Scales: 5-year warranty, free shipping to the 48 contiguous states, and support 7 days a week (residential delivery and lift gate per the shipping policy). Call (661) 888-1919 for today's lead time or a system quote, or email sales@libertyscales.com.
Questions buyers ask
Is this scale legal for trade in my state?
NTEP-certified models are accepted by weights-and-measures authorities across the U.S.; your local authority performs the placing-in-service check. Non-NTEP models are for internal weighing.
Can I add a printer later?
Yes. The LS-7510 indicator has an RS-232 port; the LS-25 thermal printer connects to it at any time.
What is the lead time?
Most floor scales ship within days from Valencia, CA. Call (661) 888-1919 for today's lead time on your size and capacity.
Liberty Scales · LS-900-4x5 · NTEP certified
LS-900-4x5 NTEP Certified USA Made Floor Scales
NTEP · legal for trade4×5 ftMade in USA5-year warrantyFree shipping
$2,298.99scale with indicator · price updates with your choices
Capacity1,000 to 20,000 lb
CertificationNTEP, legal for trade
1Choose size and capacity
Pick the lowest capacity that covers your heaviest load plus the pallet. Readability gets finer as capacity goes down.
