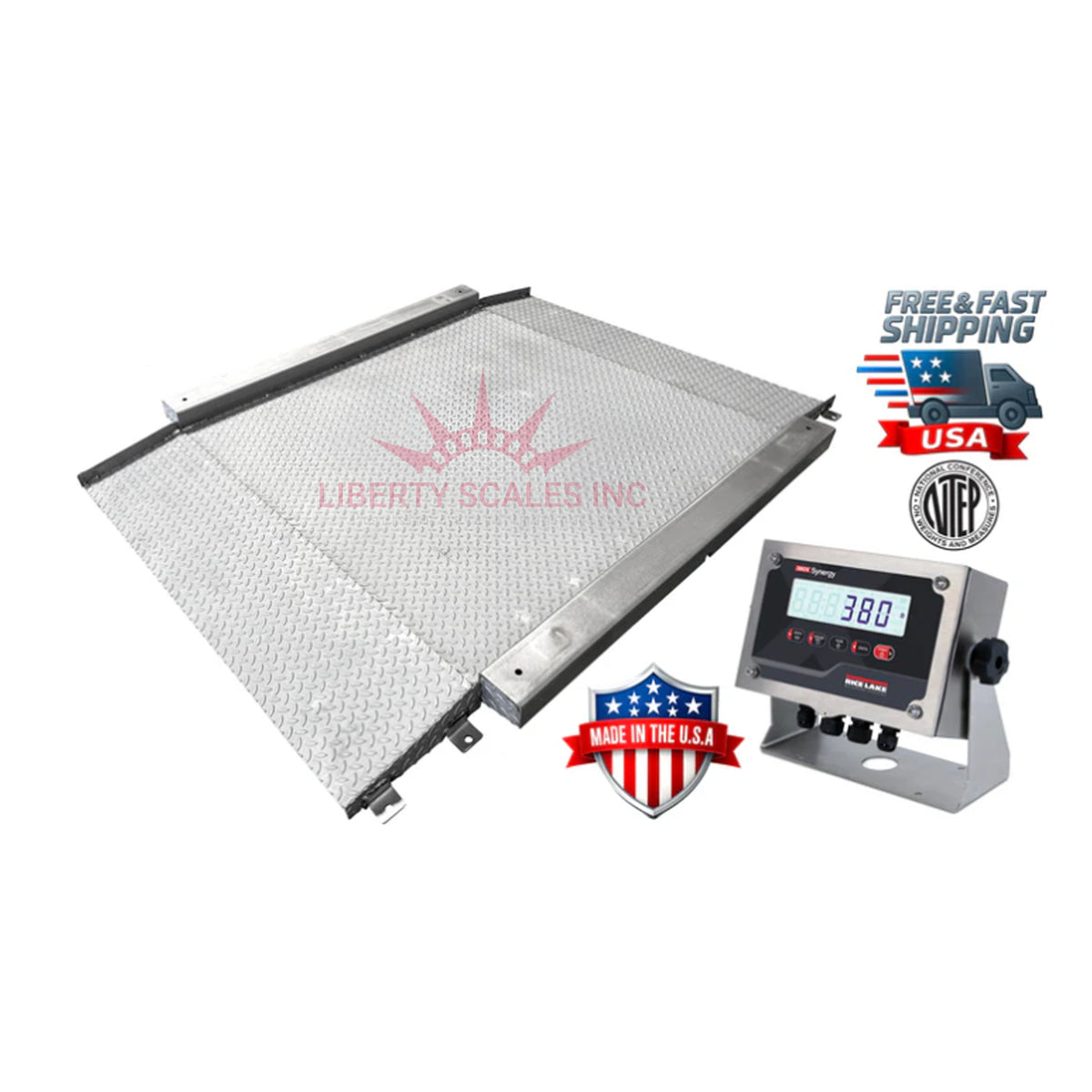

Liberty LS-917-SS-R Premium Stainless Steel Drum Scale

with Rice Lake 380X Synergy Series IP69K Stainless Steel Indicator

When precision, hygiene, and durability matter, Liberty’s LS-917-SS-R Drum Scale delivers unmatched performance. Expertly crafted in the USA using 304 stainless steel, this ultra-low-profile drum scale is purpose-built for industries that demand corrosion resistance, easy cleaning, and accuracy—such as food processing, chemical handling, and pharmaceutical manufacturing.

Its integrated ramps allow effortless roll-up access, eliminating the need to lift heavy drums or containers. The diamond tread deck ensures a non-slip surface, while every weld and polished edge reflects Liberty’s signature American craftsmanship and precision engineering.

Key Benefits

Exceptional Craftsmanship:
Made entirely from 304 stainless steel sourced in the USA, ensuring superior strength, corrosion resistance, and longevity in demanding wash-down environments.

Ease of Use:
Ultra-low ramps enable smooth roll-on access for drums, totes, and containers—reducing operator strain and improving workflow.

Hygienic & Easy to Clean:
The smooth stainless finish resists moisture, chemicals, and buildup, making it ideal for sanitary environments that require daily cleaning.

Safety First:
The anti-slip diamond plate surface and adjustable leveling feet provide stability and traction during use.

Durability & Portability:
Built for both permanent installations and mobile applications, the LS-917-SS-R withstands years of continuous industrial operation.

Multiple Sizes:
Available in 30" × 30", 36" × 36", and 48" × 48" platforms to suit your operational needs.

Reliable Power & Display – Rice Lake 380X Synergy Series Indicator

The Rice Lake 380X Synergy Series brings cutting-edge accuracy and performance to the LS-917-SS-R. Constructed of IP69K-rated 304 stainless steel, it is designed to endure harsh, wet environments while maintaining precision and reliability.

Key Technical Features:

• Power: Internal 120 VAC charger, lithium-ion battery (up to 45 hours runtime per charge).

• Excitation Voltage: 5 VDC; supports up to 8 × 350 Ω or 16 × 700 Ω load cells.

• Resolution: Internal 8,000,000 counts; Display up to 100,000 divisions.

• A/D Sample Rate: Selectable from 5 to 120 Hz for flexible response.

• Analog Signal Input Range: –0.3 mV to +30 mV; Sensitivity 1 µV per graduation recommended.

• Display: 1" (25 mm) high LCD digits with full annunciators (g, lb, t, tn, kg, oz, battery, gross, net, zero, unstable).

• Communication Ports: One full-duplex RS-232 (three-wire) and one USB 2.0.

• Linearity: Within 0.01% of full scale.

• Operating Temperature: 14 °F to 122 °F (–10 °C to 50 °C).

• Material & Rating: 304 Stainless Steel Enclosure, IP69K Wash-Down Rated.

• Weight: 6.25 lb (3 kg).

• Certifications: NTEP #21-051, Measurement Canada AM-6184, CE, UKCA, cULus, IEC compliant.

• Warranty: Backed by Liberty’s 5-Year Limited Warranty.

Legal for Trade Accuracy:
NTEP Certified – COC # 22-056

Customization Options

Enhance your LS-917-SS-R Drum Scale with the following add-ons:

• Stainless Printer Integration: Instantly record and print weight data.

• Large Remote Scoreboards: Select from six visibility-optimized sizes.

• Data Collection Software: Easily log, store, and manage weight records.

• Indicator Stands: Stainless stands for ergonomic viewing and protection.

• Explosion-Proof Indicator: For intrinsically safe or flammable environments.

• Extended Cable Options: Standard 15 ft; optional 50 ft and 100 ft lengths.

• 4–20 mA / 0–5 V Output: Integrate seamlessly with PLC or automation systems.

• Bumper Guards: Protect your scale from forklift or drum impact.

Why Choose Liberty’s LS-917-SS-R

By choosing the LS-917-SS-R, you’re investing in American-made precision, industrial-grade stainless steel, and proven reliability backed by Rice Lake’s world-class indicator technology.
This is more than a drum scale — it’s a high-performance tool built to improve safety, accuracy, and efficiency in demanding industrial and wash-down environments.

Experience precision engineering at its finest — Experience Liberty Scales.
