Do you need help with inaccurate weight measurements in your industrial applications?

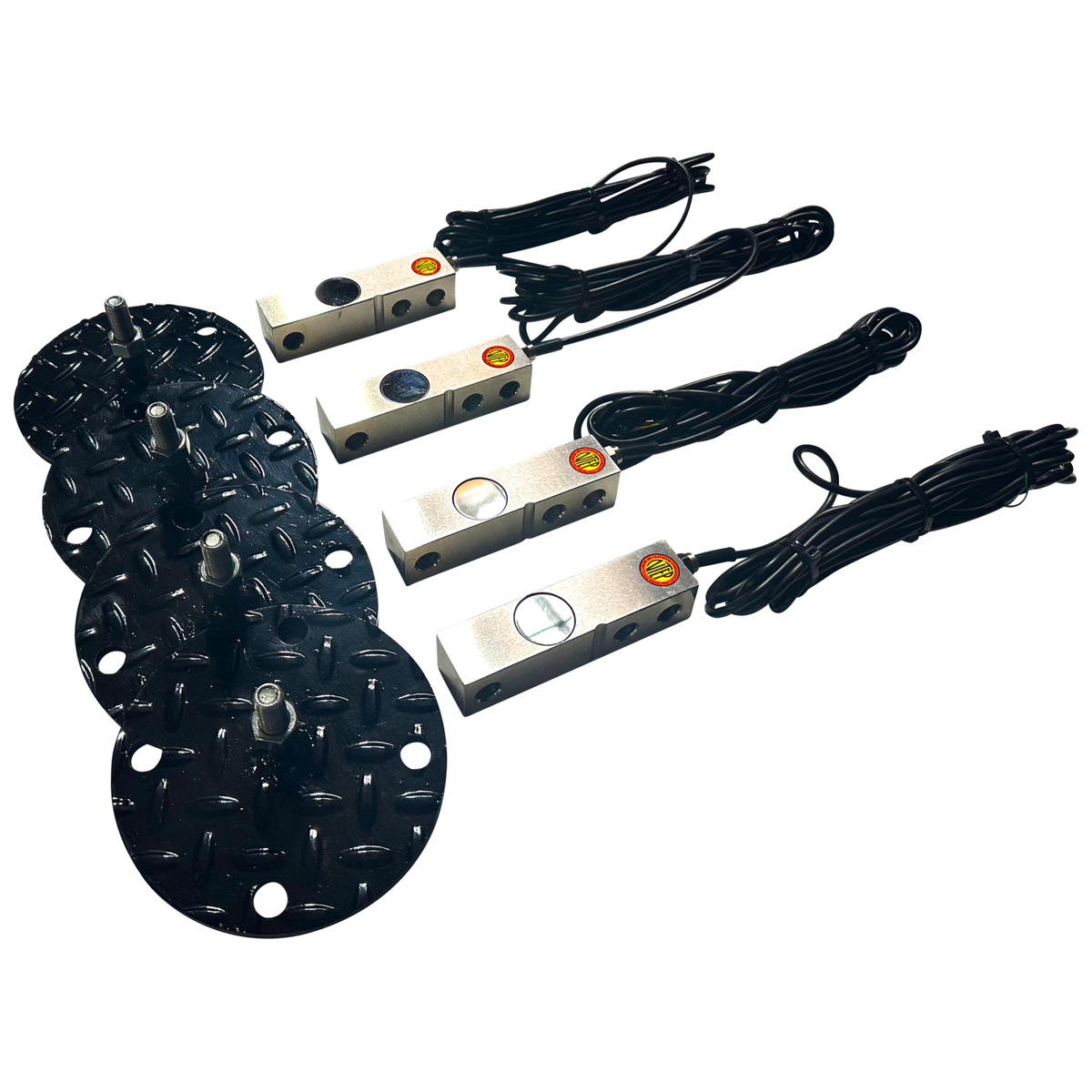

Our LS-818-5klb-6R Shear Beam Load Cell Kit is designed to tackle this problem head-on. This kit is meticulously engineered to provide precise, long-lasting results across many uses, including floor and platform scales, tank weighing, and animal scales. With its robust construction from alloy steel, this load cell guarantees strength and resilience in even the most demanding environments. Opt for our stainless steel model for outdoor or high-moisture applications, ensuring enhanced durability and performance.

Key Benefits:

• Precision Weighing: Delivers highly accurate readings crucial for industrial applications, ensuring minimal discrepancies.
• Durability: Made from rugged alloy or optional stainless steel for extra resilience against wear and tear.
• Versatility: Suitable for a wide range of applications from logistics to agriculture, enhancing flexibility in usage.
• Easy Integration: Features 6" diameter rigid feet with 1/2" 20 UNF threading, facilitating straightforward installation and retrofitting.
• Adaptability: Engineered to perform indoors and outdoors reliably, accommodating diverse environmental conditions.
• Long-Term Stability: Maintains consistent performance over time, reducing the need for frequent recalibrations.
• Cost-Effective: Minimizes operational costs by improving the efficiency and accuracy of your weighing processes.
• High Load Capacity: It can handle up to 5,000 lbs, making it suitable for heavy-duty industrial applications.

Small Envelope Shear Beam Load Cell Specifications

• Rated Capacity: 5,000 lb (per load cell)
• Total Capacity of 4 Load cells with 200% overload protection: 10,000 lb
• Kit calibration options: 1000 lb x .2 lb, 2500 lb x .5 lb, 5000 lb x 1 lb, 10,000 lb x 1 lb accuracy
• Rated Output: 3.0 ± 0.003 mV/V
• Total Error: ± 0.02% F.S.
• Creep (30 min): ± 0.02% F.S.
• Input Resistance: 385 ± 10 Ω
• Output Resistance: 351 ± 2 Ω
• Recommended Excitation Voltage: 4–12 VDC
• Maximum Excitation Voltage: 15 VDC
• Operating Temperature Range: -10 to +40°C
• Safe Overload: 150% F.S.
• Destructive Load: 200% F.S.
• Cable Length: 10 ft (4-wire with shield)
• Wiring Colors: Red (Exc+), Black (Exc-), Green (Sig+), White (Sig-)
• Material: Alloy Steel or Stainless steel
• Suitable for: Floor Scales, Platform Scales, Tanks, Conveyor Systems, Bagging Machines, Batching Systems, Animal Scales, Custom Applications

When you choose our LS-818-5klb-6R Shear Beam Load Cell Kit, you're not just getting a tool but investing in reliability. Imagine the peace of mind that comes with knowing your weighing systems are spot-on every time. This load cell kit resolves the frustration of inconsistent data and enhances your operational efficiency. Embrace the confidence of precision with this indispensable addition to your industrial applications.

Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.

Attention:

If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells, & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.

Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
