Are you tired of inconsistent and inaccurate weight measurements in your industrial applications?

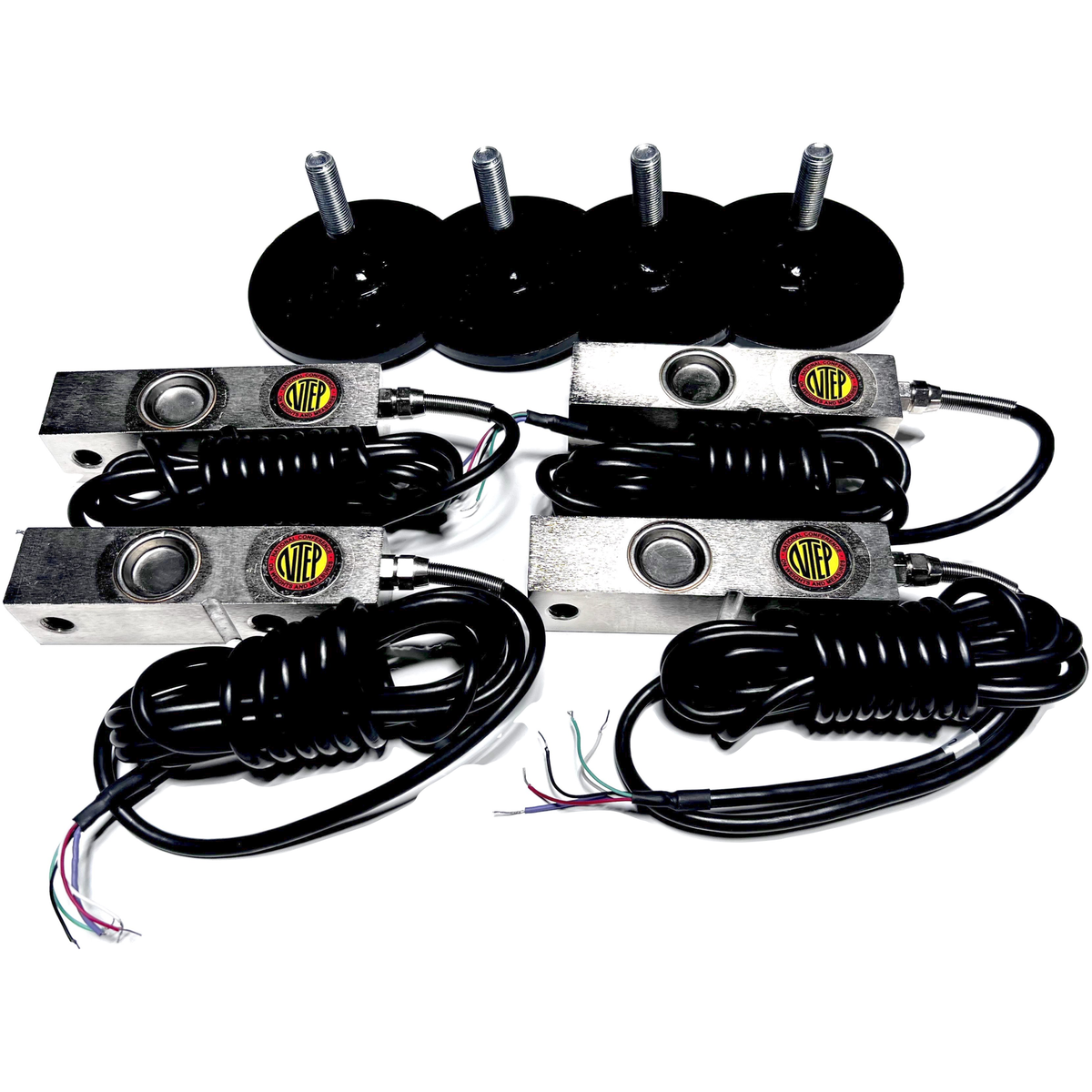

Upgrade to the LS-818-5klb-4R Shear Beam Load Cell Kit for unmatched precision and reliability. This high-performance load cell sensor is explicitly designed to solve the problem of erratic weight data in various industrial environments, ensuring your weighing systems operate flawlessly and efficiently.

Built for versatility, the LS-818-5klb-4R Load Cell Kit excels across various applications—from floor scales and platform setups to more complex systems like tank weighing and conveyor operations. Its rugged alloy steel construction meets the harshest industrial conditions, offering longevity and consistent performance. Choose the stainless steel version for environments that demand resistance to corrosion and moisture, making it ideal for outdoor or wash-down applications.

Key Benefits:

• High Capacity: Supports up to 5,000 lbs, perfect for heavy-duty industrial use.
• Enhanced Precision: Delivers accurate readings crucial for optimizing your operations.
• Versatile Applications: Suitable for floor scales, platform scales, tank weighing systems, conveyor belts, and more.
• Durable Construction: Made with robust alloy or optional stainless steel for harsh conditions.
• Easy Installation: Features 4-inch diameter feet with 1/2" 20UNF thread for straightforward integration into existing systems.

Small Envelope Shear Beam Load Cell Specifications

• Rated Capacity: 5,000 lb (per load cell)
• Total Capacity of 4 Load cells with 200% overload protection: 10,000 lb
• Kit calibration options: 1000 lb x .2 lb, 2500 lb x .5 lb, 5000 lb x 1 lb, 10,000 lb x 1 lb accuracy

• Rated Output: 3.0 ± 0.003 mV/V
• Total Error: ± 0.02% F.S.
• Creep (30 min): ± 0.02% F.S.
• Input Resistance: 385 ± 10 Ω
• Output Resistance: 351 ± 2 Ω
• Recommended Excitation Voltage: 4–12 VDC
• Maximum Excitation Voltage: 15 VDC
• Operating Temperature Range: -10 to +40°C
• Safe Overload: 150% F.S.
• Destructive Load: 200% F.S.
• Cable Length: 10 ft (4-wire with shield)
• Wiring Colors: Red (Exc+), Black (Exc-), Green (Sig+), White (Sig-)
• Material Options: Available in Alloy Steel or Stainless Steel
• Suitable for: Floor Scales, Platform Scales, Tanks, Conveyor Systems, Bagging Machines, Batching Systems, Animal Scales

Experience the peace of mind of knowing your weighing operations are backed by the LS-818-5klb-4R Load Cell Kit. With its superior stability and precise measurements, you can focus on enhancing your business's productivity and efficiency. Say goodbye to weighing inaccuracies and hello to a streamlined, dependable process that keeps your operations running smoothly. Invest in the LS-818-5klb-4R today and feel the satisfaction of a perfectly balanced workload.

Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.

Attention:

If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells, & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.

Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
