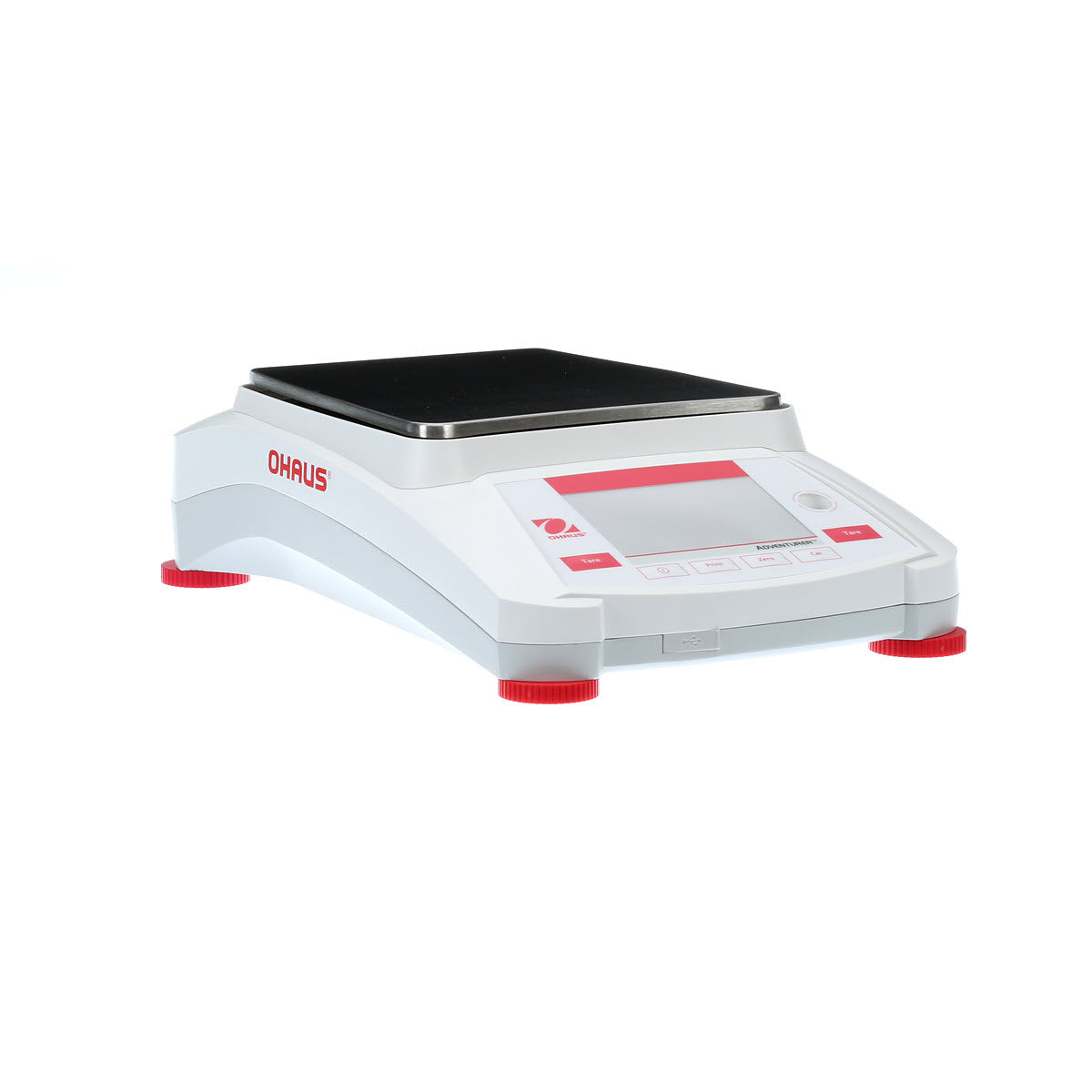

Ohaus Adventurer Precision AX4202/E, Legal For Trade, 4,200g x 0.01g
Original price
$2,314.00
-
Original price
$2,314.00
Original price
$2,314.00
$2,314.00
-
$2,314.00
Current price
$2,314.00
-
OverviewStriking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.ApplicationsWeighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Totalization/Statistics, Formulation, Density Determination, Display HoldDisplay4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightnessOperationAC adapter (included)CommunicationRS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.ConstructionMetal base, ABS top housing, stainless steel pan, glass draftshield with two piece top mounted side doors and sliding top door (1mg models only), illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, full housing in-use coverDesign FeaturesSelectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages
-
Maximum Capacity 4,200 g Readability 0.01 g Pan Size 7.7 in x 6.9 in (195 mm x 175 mm) Internal Calibration Not Applicable Draftshield — Auxiliary Display Model Available as an Accessory Battery Life Not Applicable Communication RS232 (Included);USB;USB Host Dimensions (HxLxW) 3.94 in x 13.93 in x 9.05 in (100 mm x 354 mm x 230 mm) Display High resolution full colour VGA touch display In-use cover Included Legal for Trade Not Applicable Linearity ± 0.02 g Minimum Weight (USP, 0.1%, typical) 20 g Net Weight 10.2 lb (4.6 kg) Pan Construction Stainless Steel Power AC Adapter (Included) Repeatability (typical) 0.01 g Stabilization Time 1.5 s Tare Range To capacity by subtraction Units of Measurement Gram;Milligram;Carat;Ounce;Ounce Troy;Pound;Pennyweight;Grain;Newton;Momme;Mesghal;Hong Kong Tael;Singapore Tael;Taiwan Tael;Tical;Tola;Baht;Custom Working Environment 50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) -
Adventure AX_datasheet_ID_80774934
Adventure AX_Grain Scale_datasheet
Adventurer AX Data Sheet_AP_80774751
Adventurer AX Data Sheet_DE_80774757_A
Adventurer AX Data Sheet_ES_80774754_A
Adventurer AX Data Sheet_EU_80774743_D
Adventurer AX Data Sheet_FR_80774755_B
Adventurer AX Data Sheet_IT_80774756_A
Adventurer AX Data Sheet_JP_80774741
Adventurer AX Data Sheet_KR_80774785
Adventurer AX Data Sheet_LA_80774788
Adventurer AX Data Sheet_RUS
Adventurer AX Data Sheet_US_80774742_H
Adventurer AX Datasheet_CN_30137358
Agency Approval Certificates
Australia NMI
AU NMI Cert 6-4C-292 (AX)
CE Declaration of Conformity
30308278_B_EU DoC_AX_2016-04-20
30308278_C_EU DoC_AX_2016-04-20
30308278_D_EU DoC_AX_2017-01-20
30308278_E_EU DoC_AX_2017-04-19
80610136_-_AX_EC DoC_2014-07-30
80610136_A_AX_EC DoC_2014-09-18
EC Type - Approval Certificate
EC TAC T8508 Rev 0 (Adventurer AX)
In-Metro (Brasil)
AX Class I_INMETRO Cert_P_232-2016_051519-2015_Dicol_55055682016128
Measurement Canada
MC AM-5957 (Adventurer AX)
NTEP Certificate
NTEP CC 14-082 (Adventurer AX)
OIML R76 Certificate of Conformity
OIML Cert R76-2006-NL1-14_20 (Adventurer AX)
Drivers
AX USB Win 7 Drivers (32_64 Bits)
AX USB Win 8 Drivers (32 Bits)
AX USB Win XP Drivers (32_64 Bits)
Window 10 Drivers
Instruction Manuals
Instruction Manual Adventurer BR 30084016 A
Instruction Manual AX CN 30084017G
Instruction Manual AX DE 30111781F
Instruction Manual AX EN 30084016G
Instruction Manual AX ES 30128002F
Instruction Manual AX EU US 30206078 B
Instruction Manual AX FR 30127999F
Instruction Manual AX Grain EN 30127998A
Instruction Manual AX IT 30128001F
Instruction Manual AX JP 30084028 C
Instruction Manual AX KR 30127947 C
Instruction Manual AX PT 30424009C
Instruction Manual AX/W EN 30401670B
Instruction Manual Density Determination Kit EN ES FR DE IT 30401674B
Instruction Manual Density Determination Kit_EN 83021512_G
Quick guide_AX_CN_A_30111760
Quick Start Guide AX CZ 30111807A
Quick Start Guide AX DE 30111762 A
Quick Start Guide AX EN 30111760B
Quick Start Guide AX ES 30111764A
Quick Start Guide AX FR 30111761A
Quick Start Guide AX HU 30111805A
Quick Start Guide AX IT 30111763A
Quick Start Guide AX PL 30111806A
Quick Start Guide AX SK 30111808A
Quick User Guide AX EN ES FR 30480357A
User Guide AX 12 languages 30283442 A
- No Options Available
