Ohaus · Bench Scales · Authorized Ohaus Dealer

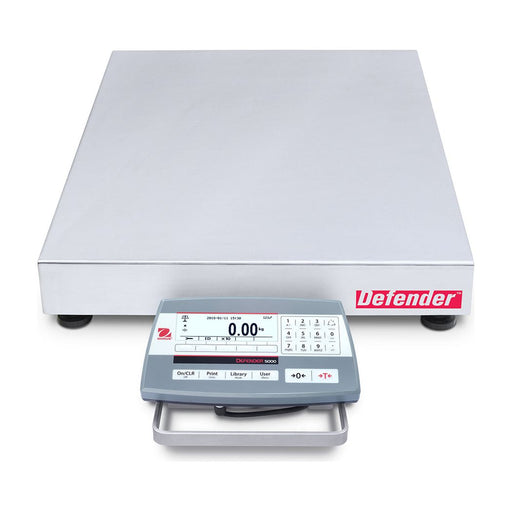

Defender™ 5000 Low Profile - Plastic Indicator
15 modelsNTEP optionsFree shippingOhaus warranty + Liberty support
from $1,837.80pick a model below
Choose your model15 models on Liberty
Call (661) 888-1919 for stock and lead time.
Models and prices
Liberty price on every model. Same item numbers as ohaus.com.
| Model | Item | Capacity | Readability | Platform / pan | Legal for trade | Liberty price | |
|---|---|---|---|---|---|---|---|
| 24"x 18" Bench Scale | 30461657 | D52P125RTX5 250lb | 0.05lb | $2,353.50 | View | ||
| 24"x 24" Bench Scale | 30467606 | D52P250RQV5 500lb | 0.1 lb | $2,513.70 | View | ||
| 12"x 12" Bench Scale | 30461649 | D52P25RQR5 50lb | 0.01 lb | $1,837.80 | View | ||
| 12"x 12" Bench Scale | 30461648 | D52P12RQR5 25lb | 0.005 lb | $1,837.80 | View | ||
| 14"x 12" Bench Scale | 30461652 | D52P25RTR5 50lb | 0.01lb | $1,914.30 | View | ||
| 24"x 18" Bench Scale | 30461658 | D52P250RTX5 500lb | 0.1lb | $2,353.50 | View | ||
| 14"x 12" Bench Scale | 30461653 | D52P50RTR5 100lb | 0.02lb | $1,914.30 | View | ||
| D52P125RTV5 | 30467607 | 250 lb | 0.01 lb | 31.5 in x 23.6 in | NTEP Certified, Measurement Canada Approved | $3,317.40 | View |
| 18"x18" Bench Scale | 30461655 | 250 lb | 0.01 lb | $2,250.90 | View | ||
| 18"x18" Bench Scale | 30461654 | 100 lb | 0.005 lb | $2,250.90 | View | ||
| D52P125RQV5 | 30461660 | 250 lb | 0.01 lb | 24 in x 24 in | NTEP Certified, Measurement Canada Approved | $2,513.70 | View |
| D52P50RQV5 | 30461659 | 100 lb | 0.005 lb | 24 in x 24 in | NTEP Certified, Measurement Canada Approved | $2,513.70 | View |
| D52P50RTX5 | 30461656 | 100 lb | 0.005 lb | 24 in x 18 in | NTEP Certified, Measurement Canada Approved | $2,353.50 | View |
| D52P12RTR5 | 30461651 | 25 lb | 0.001 lb | 14 in x 12 in | NTEP Certified, Measurement Canada Approved | $1,914.30 | View |
| D52P50RQR5 | 30461650 | 100 lb | 0.005 lb | 12 in x 12 in | NTEP Certified, Measurement Canada Approved | $1,837.80 | View |
Details (from the 24"x 18" Bench Scale listing; each model page carries its own)
-
OverviewMultifunctional Bench Scale for Standard Industrial Applications
- User-friendly model with an easy-to-use keypad, large backlit display and plain text on-screen prompts which guide you through operation.
- Durable construction with a stainless steel platform, sand grey powder-coated steel frame & aluminum load cell. Defender meets NTEP/Measurement Canada or OIML/EC type approvals (depending on region).
- Features common industrial modes and supports a 50,000-item library with 1,000 user profiles for easy data management. Includes GMP/GLP with time/date for result traceability.
Applications: Parts Counting with APW optimization, Checkweighing or Checkcounting, Percent Weighing, and Dynamic Weighing or Display Hold.
Display: Dot matrix LCD with white LED backlight, 256 x 80 pixels, with on-screen checkweighing display.
Construction: Stainless steel platform and indicator front mount, powder-coated steel base frame, aluminum loadcell and ABS plastic Indicator.
Operation: 100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (optional).
Communication: Standard RS232, MicroSD Card included; Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB, Analog Output, or 2 In/4 Out Digital I/O.
Design Features: Up to 25,000d/5,000e NTEP Class III certified and Measurement Canada Class III approved legal-for-trade, GMP/GLP output with time/date, EasyConnect connector allows fast set-up.
-
Maximum Capacity 100.0 lb Maximum Capacity 50 kg Readability 2 g (0.005 lb) Readability (Certified) 10.0 g (0.02 lb) Platform Size (Length) 610.0 mm (24.0 in) Platform Size (Width) 457.0 mm (18.0 in) Legal for Trade Measurement Canada Approved;
NTEP CertifiedPower AC Power (Included);
Rechargeable Battery (Not Included)Platform Construction Stainless Steel Tare Range To capacity by subtraction Net Weight 24.0 kg (52.9 lb) Dimensions (Height) 130.0 mm (5.1 in) Working Environment 14°F – 104°F, 80%RH, non-condensing Display Dot matrix LCD with white LED backlight Dimensions (Width) 457.0 mm (18.0 in) Dimensions (Length) 887.0 mm (34.9 in) Second Scale Input Not Applicable Units of Measurement Custom; Gram; Kilogram; Metric Tonnes; Ounce; Pound; Pound:Ounce; Tonne Outputs 3 In/4 Out digital I/O;
4 - 20mABattery Life 20 Hours with Rechargeable Battery Protection Rating Not Applicable Working Environment -10°C – 40°C, 80%RH, non-condensing
