A mechanical weighing scale measures mass or weight using physical mechanisms rather than electronic sensors. The most common designs use a system of calibrated beams and sliding weights (triple beam balance), a spring-loaded dial, or a platform-and-fulcrum arrangement. When an object is placed on the scale, the physical displacement of the mechanism indicates the weight against a pre-calibrated scale. Because no electronics are involved, mechanical scales do not require batteries or power sources and are immune to electromagnetic interference.

Digital scales use load cells and electronic signal processing to measure weight, displaying results on a digital readout. Mechanical scales use physical counterweights, springs, or beam systems to indicate weight on a graduated scale. Digital scales generally offer faster readings, higher resolution, and data output capability. Mechanical scales offer power independence, simpler maintenance, and are often preferred in environments where electronics are restricted or where independent verification of calibration is required. For most industrial operations, digital floor scales are the practical choice, while mechanical instruments serve specialized roles in labs and field applications.

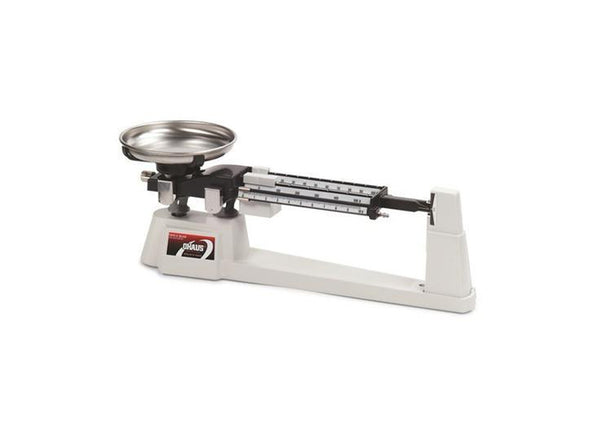

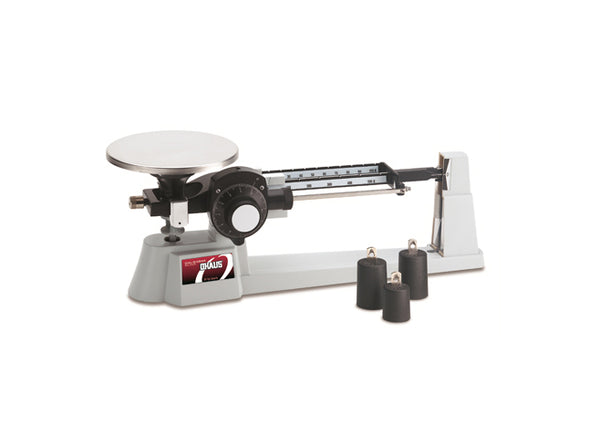

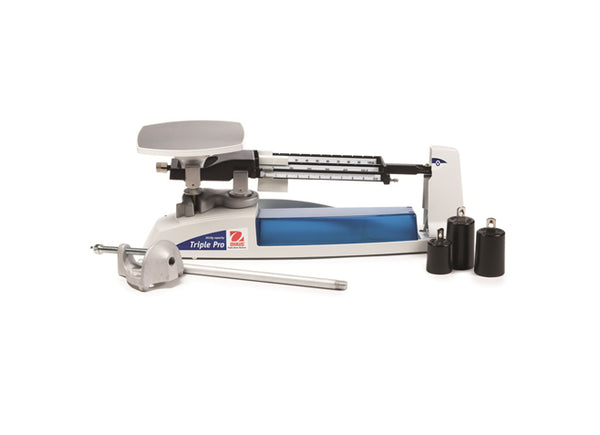

Ohaus mechanical scales are widely used in educational laboratories for teaching measurement principles, in pharmaceutical and chemical environments where power-free weighing is preferred, and as reference or backup instruments in calibration workflows. Triple beam balances from Ohaus are a standard in secondary and university science programs due to their accuracy, durability, and straightforward operation. Platform mechanical scales serve light industrial and food portioning applications where a simple, non-electronic solution is preferred.

Yes. Ohaus mechanical balances, particularly their triple beam and analytical mechanical models, deliver accuracy sufficient for most educational and general laboratory applications. A well-maintained triple beam balance typically reads to 0.1 gram increments. For applications requiring higher resolution, such as pharmaceutical compounding or analytical chemistry, an analytical balance with sub-milligram readability is the appropriate choice. Mechanical scales should be calibrated regularly and kept level on a stable surface to maintain accuracy.

Mechanical scales require periodic calibration to ensure readings remain accurate, particularly after relocation, exposure to vibration, or extended use. Unlike digital scales, which are calibrated using known weights and an internal adjustment routine, mechanical scales are calibrated by adjusting the zero-balance point and verifying readings against certified calibration weights. The process is straightforward and can typically be performed by the operator without specialized equipment.

Ohaus mechanical platform scales in this collection cover capacities suited to laboratory and light general-purpose use, typically ranging from a few hundred grams up to several kilograms depending on the model. For heavier industrial or agricultural weighing needs, Liberty Scales also offers a full range of heavy-duty digital floor scales and livestock weighing systems with capacities up to 20,000 lbs and beyond.

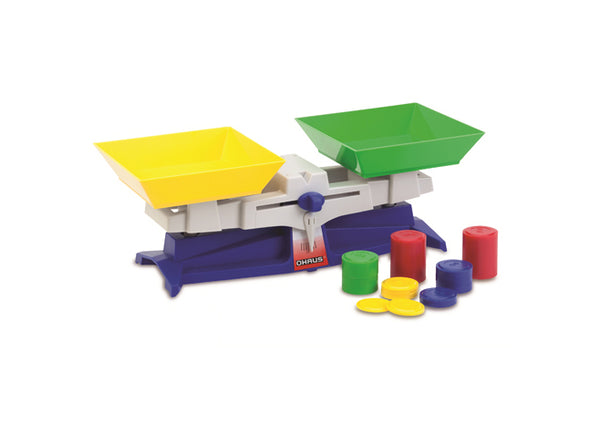

Mechanical balance scales are specifically designed for educational use and are among the most common laboratory instruments in schools and universities. Ohaus triple beam balances are built to handle daily student use, with sturdy construction that withstands the demands of shared laboratory environments. Their operation teaches fundamental measurement concepts that apply directly to more advanced digital and analytical instruments students will encounter in professional settings.

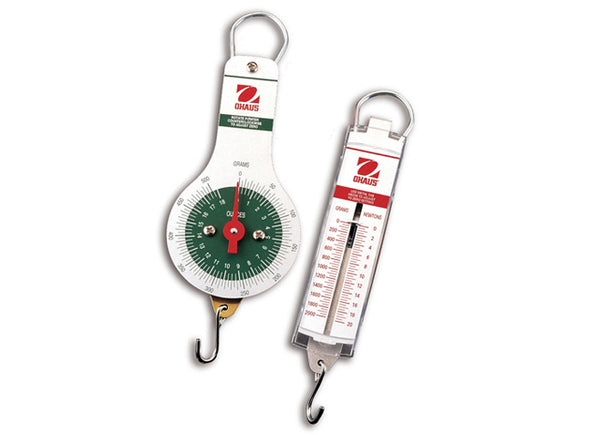

The most important factors are capacity, readability, intended application, and build quality. For educational use, a triple beam balance with graduated beams and durable construction is the standard choice. For field or industrial applications, a spring-based dial scale or platform mechanical scale provides rugged reliability. Always verify that the scale's maximum capacity exceeds your heaviest expected load and that the readability (smallest graduation) meets your precision requirements. If you are unsure which instrument suits your application, contact the Liberty Scales technical team for a recommendation.
