LS-928-4-HD-100k Industrial weigh pad system for truck & axle weighing

Original price $9,999.00 - Original price $9,999.00
Original price
$9,999.00
$9,999.00 - $9,999.00
Current price $9,999.00

Introducing the Liberty Scales LS-928-4-HD-100k, a state-of-the-art heavy-duty industrial weighing solution designed to cater to all your large-scale weighing needs. These robust, ground-based scales are perfect for accurately weighing a diverse range of vehicles, from small trucks to massive semi-trucks in sections.


Built for durability and precision, the LS-928-4-HD-100k is perfect for weighing shipping containers, small trucks, semi-trucks, trailers, and much more. Its modular design allows for easy setup and convenient transportability, ensuring seamless integration into any industrial or commercial operation. With a maximum capacity of 100,000 lbs, the LS-928-4-HD-100k is the ideal choice for businesses that require accurate and reliable large-scale weighing solutions.


Key Features:


  1. Heavy-duty construction: Designed for industrial use, the LS-928-4-HD-100k boasts a rugged build that can withstand the rigors of daily use in challenging environments.
  2. Modular design: Its sectional design allows for easy setup and transportability, making it an adaptable choice for a wide range of weighing applications.
  3. High accuracy: Equipped with advanced load cells, the LS-928-4-HD-100k delivers precise weight measurements for all your heavy-duty weighing requirements.
  4. Versatile application: The LS-928-4-HD-100k is perfect for weighing shipping containers, small trucks, semi-trucks, trailers, and much more, making it an indispensable tool for logistics, transportation, and industrial operations.
  5. User-friendly interface: The intuitive controls and easy-to-read display ensure a hassle-free weighing experience for operators of all skill levels.


Upgrade your weighing capabilities today with the Liberty Scales LS-928-4-HD-100k and experience the ultimate in heavy-duty industrial weighing solutions.



Scale base Specifications:

  • Diamond plated deck plate .250” Thick
  • Platfrom channel thickness: 10 gauge
  • load cells: X4 Shear beam (10,000 lb) per scale
  • Junction box: 4 channel Stainless steel model: LS-JB-SS4
  • powder coated deck scale & ramp ( Rust free )

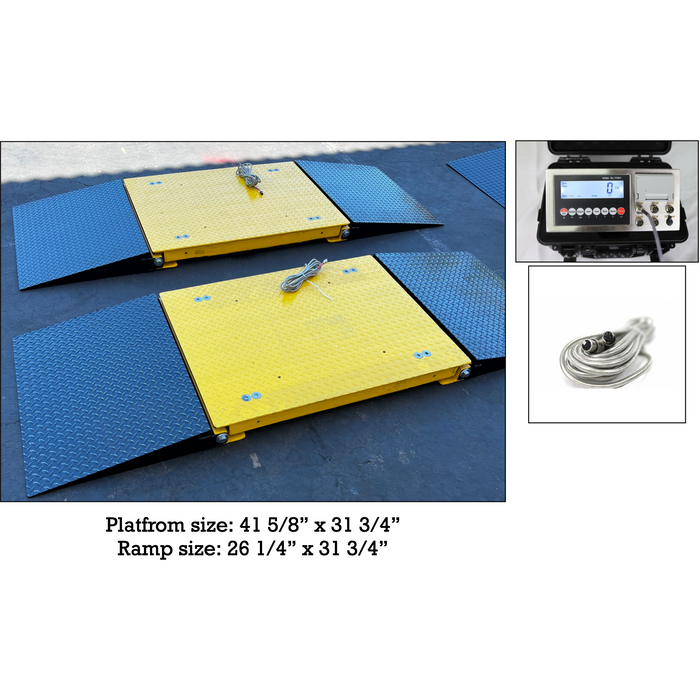

  • Scale size: 41 5/8" × 31 3/43
  • Ramp size: 26 1/4" × 31 3/4"



Equipped with our LS-7561 indicator:

  • Designed to work with static axle scales
  • Gross weighing and accumulative weighing modes
  • LCD display (size: 5.3in x 1.4in)
  • Tare, Zero, Print, Save, Check, and Delete functions
  • Kg and lb weighing units
  • Built-in needle printer
  • Different printing formats
  • 6v/4.5Ah Battery and 9v/1.2A adapter
  • Can connect to a secondary large display/scoreboard
  • Can connect with up to 4 weighing pads
  • Shows individual scale/pad percentage of the total weight
  • Manual and automatic printing modes
  • Date and time can be set easily
  • Can connect to a PC or printer for data logging
  • Wireless capability (optional)
  • Splash-proof  keyboard and display



Warranty: 5 year limited warranty, Excluding damages.

Free shipping across 48 continental USA to business with forklift or loading dock.
