Liberty LS-960 Heavy Duty Ultra low Cargo Pancake Scale with Capacity of 20,000 lb x 2 lbLiberty LS-960 Heavy Duty Ultra low Cargo Pancake Scale with Capacity of 20,000 lb x 2 lbLiberty LS-960 Heavy Duty Ultra low Cargo Pancake Scale with Capacity of 20,000 lb x 2 lbLiberty LS-960 Heavy Duty Ultra low Cargo Pancake Scale with Capacity of 20,000 lb x 2 lb
Liberty LS-960 Heavy Duty Ultra low Cargo Pancake Scale with Capacity of 20,000 lb x 2 lb
SpecificationsWhat's in the boxDescriptionDocumentsQuestionsReviews

Specifications

ModelLS-960-HD
Sizes and capacities
Capacity
Size

What's in the box

    Description

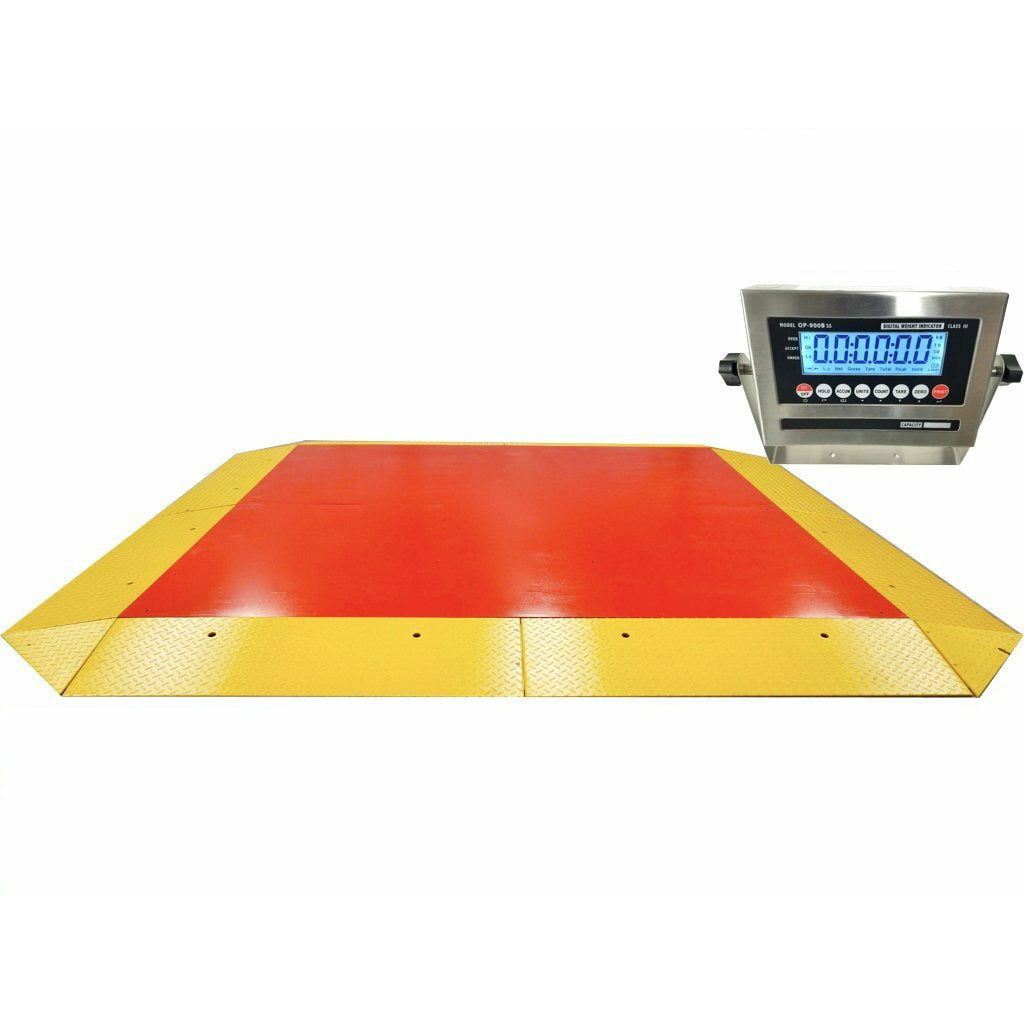

    Liberty Scale's pancake scales allow easy access & fast weighing solutions. with the Height of 2-7/8″, you will be able to drive up forklifts, pallet jacks, carts & many other material handling equipments.

    The platform of our pancake scales is 10′ x 10′, which gives great room to weigh pallets, crates & Cargo. Engineered with super low profile ramps, you will have the ease of access & save space. In addition, The ramps carry a diamond plate pattern on

    the surface which creates anti-slippage & safety. Such scale unit could be installed Indoors or outdoors, above or in-ground.

    The pancake system can be used in industrial environments, Air freight (freight forwarding companies), Logistics & warehousing & much more.

    Indicator Features

    • Large 1' Backlit LED or LCD display LS-7510 NTEP indicator
    • Optional Rechargeable battery (up to 100 hrs)
    • Metal casing
    • AC adapter included
    • Multiple weighing units: (lb/kg/g/oz/lb:oz)
    • Gross/Tare/Pre-Set Tare/Zero
    • Multiple Hold functions
    • Count weighing
    • Accumulation weighing
    • Overload / Underload alarm
    • Splash-proof  keyboard and display
    • Connects to a remote display and printer
    • NTEP approved for 2,000 divisions
    • Displays up to 50,000 graduations
    • Full Duplex RS-232 Serial Port
    • Stainless steel indicator for outdoor use available upon request

    Scale base:

    • Twin module steel deck
    • Wrap around ramps
    • Ultra-low 3” profile
    • Indoor or outdoor usage
    • Perfect for cargo dolly weighing
    • Ramps make for easy on and off and eliminate the need for a scale pit
    • Includes the LS-7510 indicator
    • Set up is simple and allows for easy relocation
    • Durable Epoxy paint finish
    • 20,000 lbs. capacity available
    • Factory Calibrated
    • Overload Protection
    • 5-year warranty on parts


      Liberty Scales · LS-960-HD

      LS-960 Heavy Duty Ultra low Cargo Pancake Scale with Capacity of 20,000 lb x 2 lb

      5-year warrantyFree shipping
      $18,974.99scale with indicator · price updates with your choices
      Capacity20K lb
      Platform10" x 10" x 3"
      CertificationNon-NTEP, industrial use
      1Choose your options

      Pick the lowest capacity that covers your heaviest load plus the pallet. Readability gets finer as capacity goes down.

      2Add optionsoptional
      3Quantity & order
      Total $18,974.99
      Request a quote
      Free freight to the lower 48. Residential, farm and rural addresses may carry an extra charge. Call (661) 888-1919 for a custom size or a system quote.
      Downloads
      Brochure
      Backed by Liberty's 5-year limited warranty
