Liberty LS-700-6x6-PF Floor Scale with Pit Frame – 72" x 72" (6' x 6') – 1,000 to 20,000 lb
SpecificationsWhat's in the boxDescriptionDocumentsQuestionsReviews

Specifications

ModelLS-700-6x6
Platform6×6 ft
Capacity × readability
Floor scale Capacity
Load cellsFour shear-beam load cells
IndicatorLS-7510 with cable and power supply (included)
Overload protection200% of capacity
FeetBall-joint leveling feet
Warranty5-year Liberty limited warranty

What's in the box

  • Platform, factory calibrated
  • LS-7510 indicator, cable and power supply
  • Four ball-joint feet
  • Quick-start guide

Description

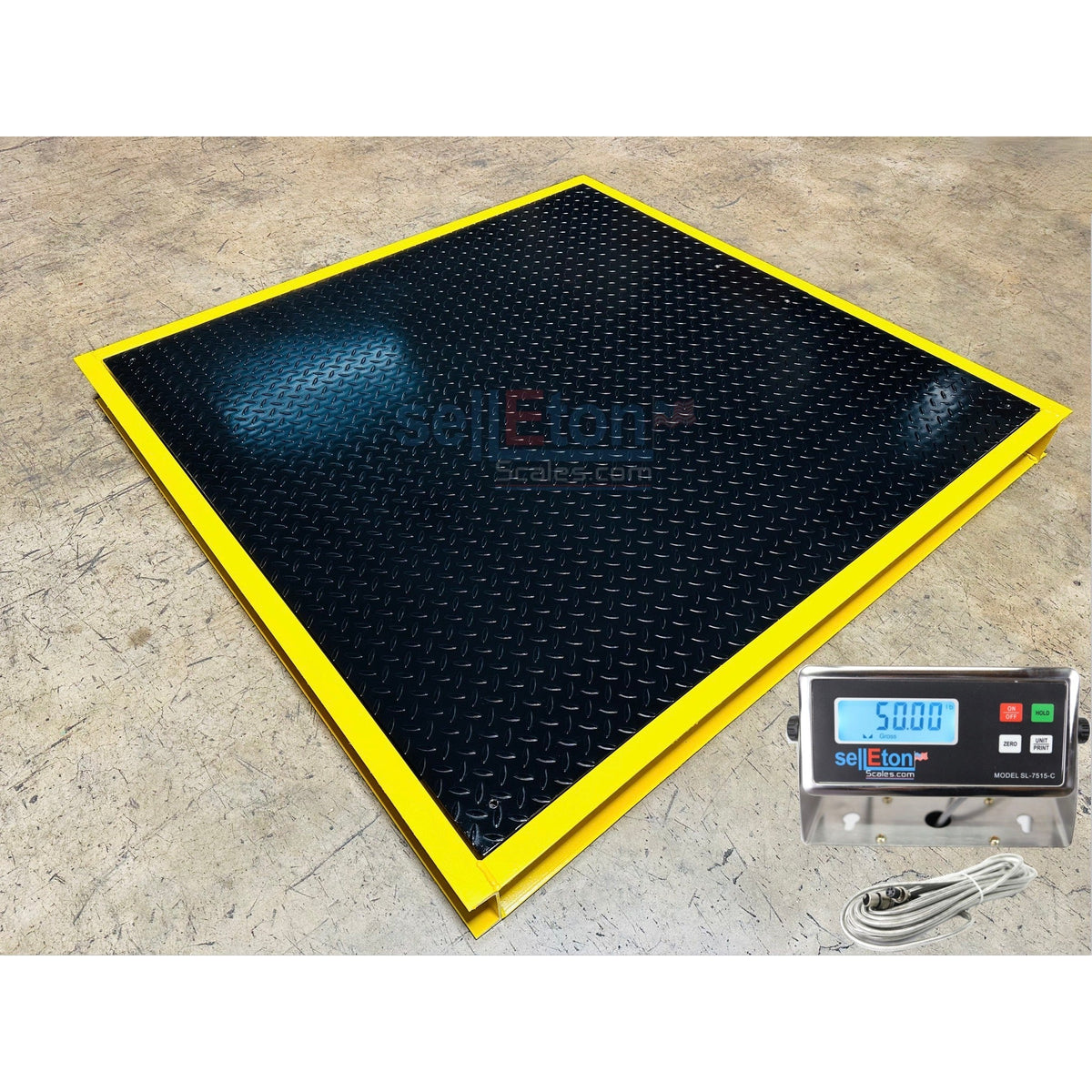

The LS-700-6x6-PF is an LS-700 floor scale, 72 in x 72 in, supplied with its pit frame so the deck sits flush with the floor. Forklifts and pallet jacks drive straight over it with no ramps; the frame can also be set above ground.

What you get

  • Platform: 6 ft x 6 ft (72 in x 72 in), welded steel frame with a diamond tread plate top; swivel leveling feet so the deck sits true inside the frame.

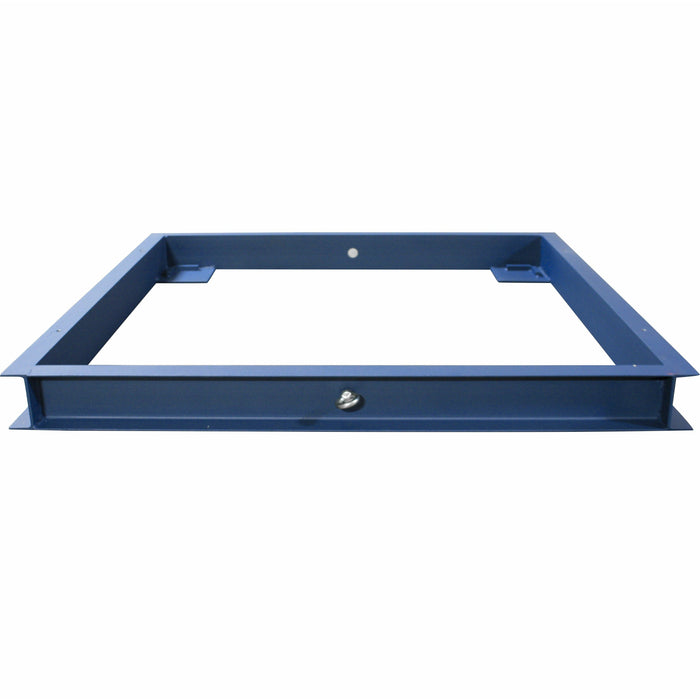

  • Pit frame: welded steel frame sized to this platform, set in the concrete before the pour for an in-ground installation, or placed on the floor with optional steel ramps.
  • Capacity and readability: 1,000 lb x 0.2 lb; 2,500 lb x 0.5 lb; 5,000 lb x 1 lb; 10,000 lb x 1 lb; 20,000 lb x 5 lb. Pick the lowest capacity that covers your heaviest load plus the pallet.
  • Load cells: four alloy steel shear-beam load cells, 200% overload protection, 20 ft shielded cable to the indicator.
  • Indicator: LS-7515-C stainless steel indicator with backlit 6-digit LCD; lb, kg and oz; gross, tare and zero; hold; parts counting; accumulation; RS-232 port for a printer or scoreboard; AC adapter included, rechargeable battery optional.
  • Certification: not NTEP, for internal weighing. For legal-for-trade use ask for the LS-800 with a pit frame.

In the box

  • Platform, factory calibrated
  • Pit frame
  • LS-7515-C indicator with cable and power supply
  • Four swivel leveling feet
  • Quick-start guide

Installation and options

Concrete work is by the customer: a level pit to the frame's outside size and depth (ask us for the frame dimensions before you dig), with a drain if the floor is washed down. Options: heavy-duty frame, steel ramps for an above-ground set-up, stainless steel indicator, load cells and junction box plus waterproofing for wet or outdoor use, LS-25 printer, LS-910 scoreboard, LS-PL-S data software.

Liberty Scales: 5-year warranty, free shipping to the 48 contiguous states, and support 7 days a week (residential delivery and lift gate per the shipping policy). Call (661) 888-1919 for today's lead time or a system quote, or email sales@libertyscales.com.

Questions buyers ask

Is this scale legal for trade in my state?

NTEP-certified models are accepted by weights-and-measures authorities across the U.S.; your local authority performs the placing-in-service check. Non-NTEP models are for internal weighing.

Can I add a printer later?

Yes. The LS-7510 indicator has an RS-232 port; the LS-25 thermal printer connects to it at any time.

What is the lead time?

Most floor scales ship within days from Valencia, CA. Call (661) 888-1919 for today's lead time on your size and capacity.

Liberty Scales · LS-700-6x6

LS-700-6x6-PF Floor Scale with Pit Frame – 72" x 72" (6' x 6') – 1,000 to 20,000 lb

6×6 ft5-year warrantyFree shipping
$6,667.99scale with indicator · price updates with your choices
Capacity1,000 to 20,000 lb
CertificationNon-NTEP, industrial use
1Choose the floor scale capacity & accuracy:

Pick the lowest capacity that covers your heaviest load plus the pallet. Readability gets finer as capacity goes down.

2Add optionsoptional
3Quantity & order
Total $6,667.99
Request a quote
Free freight to the lower 48. Residential, farm and rural addresses may carry an extra charge. Call (661) 888-1919 for a custom size or a system quote.
Downloads
BrochureIndicator manualAll floor scales
Backed by Liberty's 5-year limited warranty
