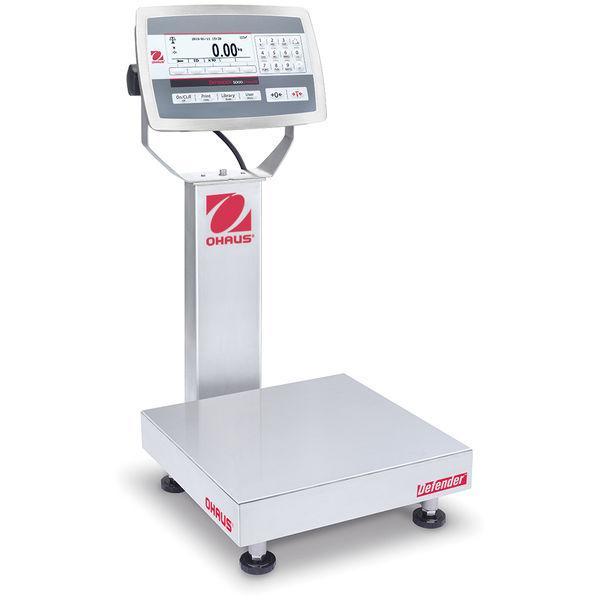

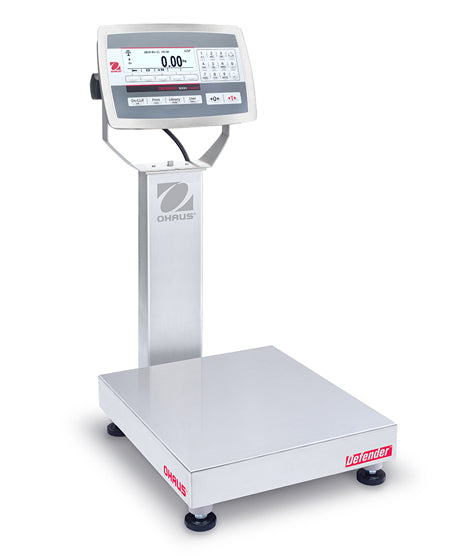

Ohaus Defender Bench Scales D52XW50RQR1, Legal for Trade, 100 lbs x 0.02 lb

Ohaus Defender Bench Scales D52XW50RQR1, Legal for Trade, 100 lbs x 0.02 lb

by Ohaus
$2,021.00 - $2,021.00
$2,021.00
$2,021.00 - $2,021.00
$2,021.00
  • Overview
    See results clearly on the large backlit display. The alpha-numeric keypad & function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation. Durably constructed with stainless steel platform, powder-coated steel bases and columns, aluminum loadcells and either stainless steel or ABS plastic indicators. Defender meets NTEP/Measurement Canada or OIML/EC Type approvals (depending on region). Features common industrial modes & supports upto 50,000 SKU items in memory and 1,000 user profiles with the included MicroSD card. GMP/GLP with time/date for result traceability.

    Applications: Parts Counting with APW optimization, Checkweighing or Checkcounting, Percent Weighing, and Dynamic Weighing or Display Hold.

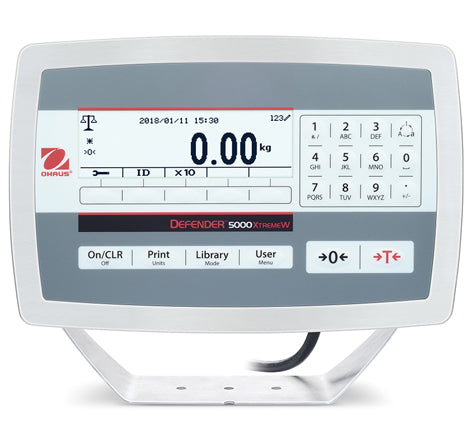

    Display: Dot matrix LCD with white LED backlight, 256 x 80 pixels, with on-screen checkweighing display.
    Construction: Stainless steel platform, powder-coated steel base frame and column, aluminum loadcell and stainless steel indicator.
    Operation: 100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (optional).
    Communication: Standard RS232, MicroSD Card included; Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB, Analog Output, or 2 In/4 Out Digital I/O.
    Design Features: Up to 25,000d/5,000e NTEP Class III certified and Measurement Canada Class III approved legal-for-trade, GMP/GLP output with time/date, EasyConnect connector allows fast set-up.
  • Maximum Capacity 100 lb (50 kg)
    Readability 0.005 lb (2 g)
    Readability (Certified) 0.02 lb (10 g)
    Platform Size (LxW) 12 in x 12 in (305 mm x 305 mm)
    Dimensions (LxWxH) 23.8 in x 17.4 in x 12 in (604 mm x 442 mm x 305 mm) (HxLxW)
    Legal for Trade NTEP Certified; Measurement Canada Approved
    Power AC Power (Included); Rechargeable Battery (Not Included)
    Battery Life 20 Hours with Rechargeable Battery
    Communication Standard RS232, MicroSD Card included; Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB, Analog Output, or 2 In/4 Out Digital I/O.
    Display Dot matrix LCD with white LED backlight, 256 x 80 pixels, with on-screen checkweighing display.
    Net Weight 24.3 lb (11 kg)
    Outputs 3 In/4 Out digital I/O; 4 - 20mA
    Platform Construction Stainless Steel
    Protection Rating Not Applicable
    Second Scale Input Not Applicable
    Tare Range To capacity by subtraction
    Units of Measurement Custom; Gram; Kilogram; Metric Tonnes; Ounce; Pound; Pound:Ounce; Tonne
    Working Environment 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
