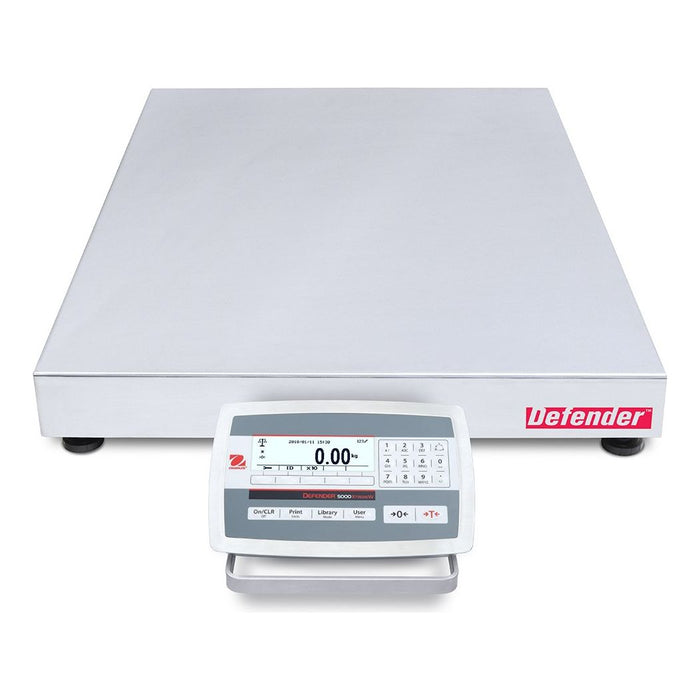

Ohaus 24"x24" Bench Scale, D52XW125RQV5 250lb x 125kg
OverviewMultifunctional Bench Scale for Standard Industrial Applications
- Large transflective dot matrix display and SmarText 3.0 interface guides used with five soft keys make advanced operations very simple to use, reducing training time for operators.
- Durable construction with stainless steel platform and indicator front mount, powder-coated steel bases, aluminum load cells, and stainless steel indicators. Defender meets NTEP/Measurement Canada or OIML/EC type approvals (depending on region).
- Features common industrial modes and supports a 50,000-item library with 1,000 user profiles for easy data management with the included MicroSD card. Includes GMP/GLP with time/date for result traceability.
Applications: Parts Counting with APW optimization, Checkweighing or Checkcounting, Percent Weighing, and Dynamic Weighing or Display Hold.
Display: Dot matrix LCD with white LED backlight, 256 x 80 pixels, with on-screen checkweighing display.
Construction: Stainless steel platform and indicator front mount, powder-coated steel base frame, aluminum loadcell, and stainless steel indicator.
Operation: 100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (optional).
Communication: Standard RS232, MicroSD Card included; Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB, Analog Output, or 2 In/4 Out Digital I/O.
Design Features: Up to 25,000d/5,000e NTEP Class III certified and Measurement Canada Class III approved legal-for-trade, GMP/GLP output with time/date, EasyConnect connector allows fast set-up.
Maximum Capacity 250.0 lb Maximum Capacity 125 kg Readability 5.0 g (0.01 lb) Readability (Certified) 20.0 g (0.05 lb) Platform Size (Length) 610.0 mm (24.0 in) Platform Size (Width) 610.0 mm (24.0 in) Legal for Trade Measurement Canada Approved;
Power AC Power (Included);
Rechargeable Battery (Not Included)
Platform Construction Stainless Steel Tare Range To capacity by subtraction Net Weight 35.0 kg (77.2 lb) Dimensions (Height) 130.0 mm (5.1 in) Working Environment 14°F – 104°F, 80%RH, non-condensing Display Dot matrix LCD with white LED backlight Dimensions (Width) 610.0 mm (24.0 in) Dimensions (Length) 880.0 mm (34.6 in) Second Scale Input Not Applicable Units of Measurement Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound: Ounce Outputs 2 In/4 Out digital I/O;
4 - 20mA
Battery Life 20 Hours with Rechargeable Battery Protection Rating Not Applicable Working Environment -10°C – 40°C, 80%RH, non-condensing
