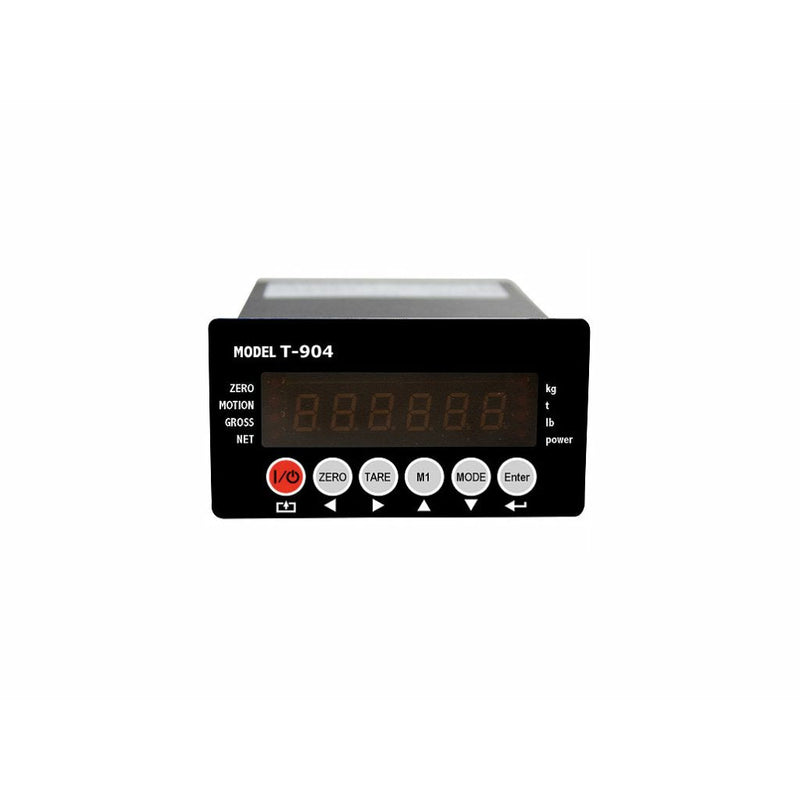

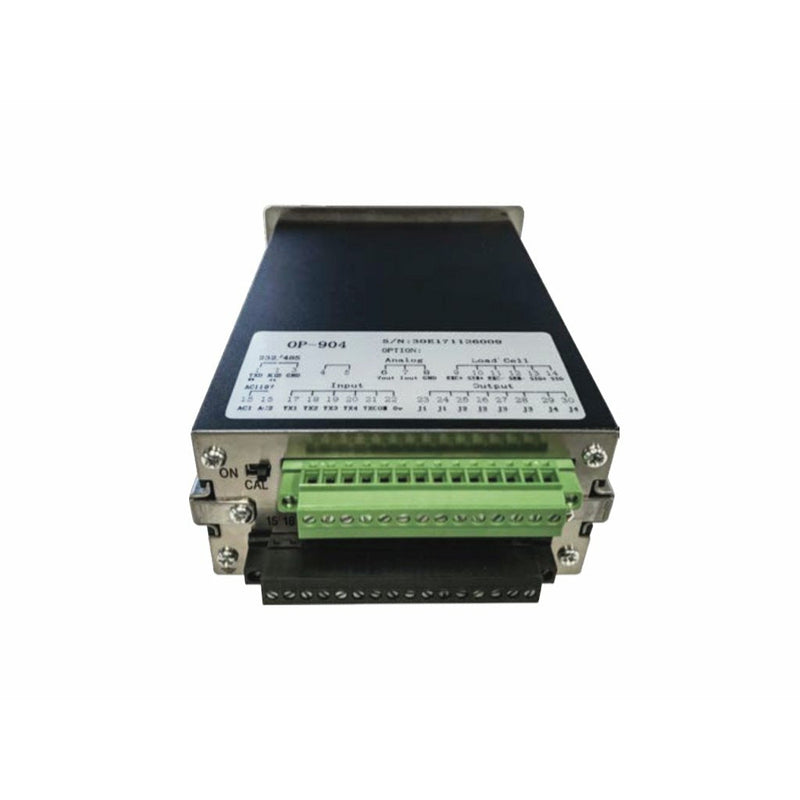

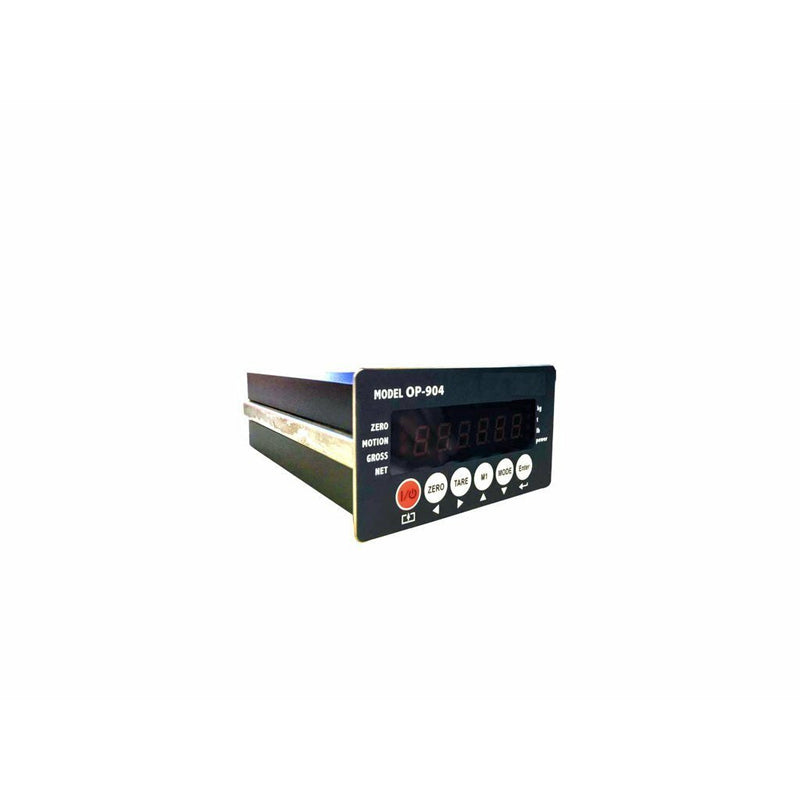

Liberty LS-904 PANEL MOUNT INDICATOR

by Liberty
Original price $1,153.99 - Original price $1,153.99
Original price
$1,153.99
$1,153.99 - $1,153.99
Current price $1,153.99

 FEATURES

LED 6 digit display
Multiple weighing units: kg/lb/t

Gross/Tare/Hold/Zero
Check weighing feature

Technical Parameters

Hardware construction features

Power supply: 24vDC
Load cell excitation voltage: 5vDC±5%
● Load cell number: up to eight 350Ω
Load cell sensitivity: 0~3.0mv/v
Load cell connections: six wire
Keyboard: six key
Display: six digits red 7 segment LED display
Relay output: 4 output, AC250v 5A
Input: isolation voltage 2500V
Analog output: 4~20mA/0~5v
Serial port: RS232/RS485, baud rate 600~19200bit/s

Operation temperature: -10 °C ~ +40 °C
● Operation humidity: ≤90%RH
Storage temperature: -40 °C ~ +70 °C (32-104°F)
Housing dimension: 92 x 45mm
Front panel dimension: 102 x 55mm
Trepanning dimension: 93 x 46mm

Software features

Max sampling speed: 120SPS

● AD digital filter
Digital calibration
Batching or dosing functions
