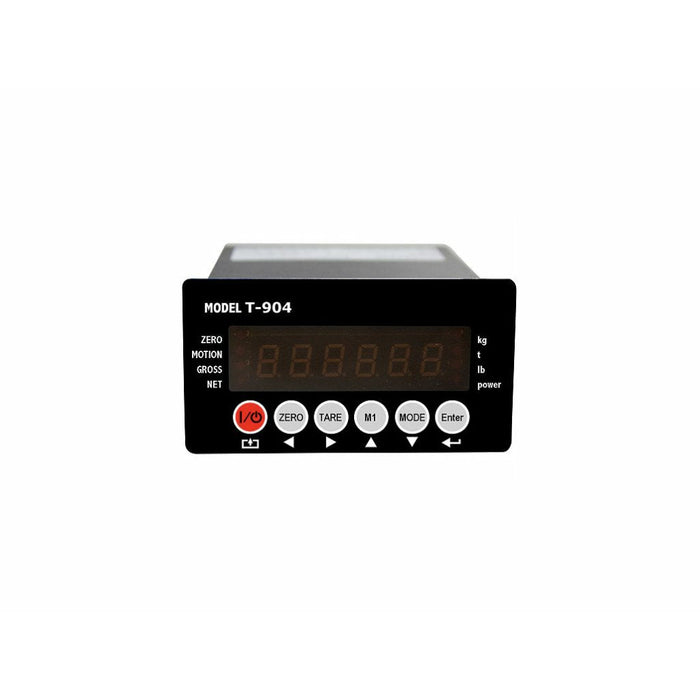

Liberty LS-904 PANEL MOUNT INDICATOR

 FEATURES

● LED 6 digit display
● Multiple weighing units: kg/lb/t

● Gross/Tare/Hold/Zero
● Check weighing feature

Technical Parameters

Hardware construction features

● Power supply: 24vDC
● Load cell excitation voltage: 5vDC±5%
● Load cell number: up to eight 350Ω
● Load cell sensitivity: 0~3.0mv/v
● Load cell connections: six wire
● Keyboard: six key
● Display: six digits red 7 segment LED display
● Relay output: 4 output, AC250v 5A
● Input: isolation voltage 2500V
● Analog output: 4~20mA/0~5v
● Serial port: RS232/RS485, baud rate 600~19200bit/s

● Operation temperature: -10 °C ~ +40 °C
● Operation humidity: ≤90%RH
● Storage temperature: -40 °C ~ +70 °C (32-104°F)
● Housing dimension: 92 x 45mm
● Front panel dimension: 102 x 55mm
● Trepanning dimension: 93 x 46mm

Software features

● Max sampling speed: 120SPS

● AD digital filter
● Digital calibration
● Batching or dosing functions
