LS-800 · NTEP
Liberty LS-800-4X6 NTEP Certified (Legal For Trade) Floor Scale
4×6 ft1,000 to 20,000 lbNTEP
from $1,549.00to $2,049.00 · free shipping
Specifications
| Model | LS-700-4x6 |
|---|---|
| Platform | 4×6 ft |
| Capacity × readability | Capacity |
| Load cells | Four shear-beam load cells |
| Indicator | LS-7510 with cable and power supply (included) |
| Overload protection | 200% of capacity |
| Feet | Ball-joint leveling feet |
| Warranty | 5-year Liberty limited warranty |
What's in the box
- Platform, factory calibrated
- LS-7510 indicator, cable and power supply
- Four ball-joint feet
- Quick-start guide
Description
The LS-700 is Liberty's general-purpose floor scale for warehouses, shipping docks and production floors. This page is the 4 ft x 6 ft platform (48 in x 72 in); the other sizes are one click away in step 1. Capacities from 1,000 lb to 20,000 lb.
What you get
- Platform: 48 in x 72 in welded carbon steel frame with a diamond tread plate top and a powder-coat finish in the color you pick.
- Capacity and readability: 1,000 lb x 0.2 lb; 2,500 lb x 0.5 lb; 5,000 lb x 1 lb; 10,000 lb x 1 lb; 20,000 lb x 2 lb. Pick the lowest capacity that covers your heaviest load plus the pallet; readability gets finer as capacity goes down.
- Load cells: four alloy steel shear-beam load cells, 200% overload protection, 20 ft shielded cable to the indicator.
- Indicator: LS-7515-C stainless steel indicator with backlit 6-digit LCD; lb, kg and oz; gross, tare and zero; hold; parts counting; accumulation; RS-232 port for a printer or scoreboard; AC adapter included, rechargeable battery optional.
- Certification: not NTEP, for internal weighing. For legal-for-trade use choose the LS-800 (same sizes, NTEP certified).
In the box
- Platform, factory calibrated
- LS-7515-C indicator with cable and power supply
- Four ball-joint leveling feet
- Quick-start guide
Options
LS-750 ramp (one side, or two for drive-through), LS-403-HD indicator stand, LS-25 printer, LS-910 scoreboard, LS-PL-S data software; stainless steel or explosion-proof indicator upgrades. For outdoor or washdown use order the stainless indicator, load cells and junction box, or choose the LS-800-SS line.
Liberty Scales: 5-year warranty, free shipping to the 48 contiguous states, and support 7 days a week (residential delivery and lift gate per the shipping policy). Call (661) 888-1919 for today's lead time or a system quote, or email sales@libertyscales.com.
Questions buyers ask
Is this scale legal for trade in my state?
NTEP-certified models are accepted by weights-and-measures authorities across the U.S.; your local authority performs the placing-in-service check. Non-NTEP models are for internal weighing.
Can I add a printer later?
Yes. The LS-7510 indicator has an RS-232 port; the LS-25 thermal printer connects to it at any time.
What is the lead time?
Most floor scales ship within days from Valencia, CA. Call (661) 888-1919 for today's lead time on your size and capacity.
Liberty Scales · LS-700-4x6

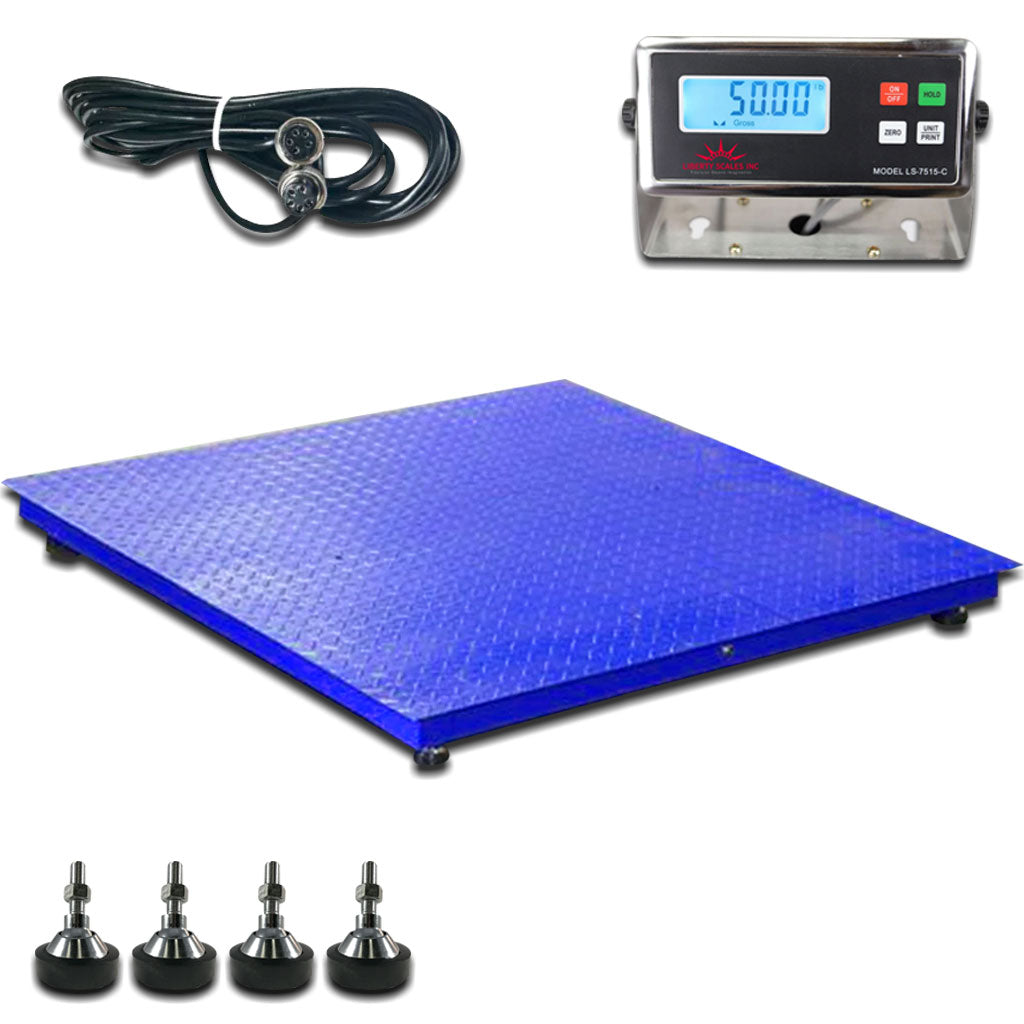

LS-700-4X6 Heavy Duty General Purpose Floor Scale
4×6 ft5-year warrantyFree shipping
$1,149.00scale with indicator · price updates with your choices
Capacity1,000 to 20,000 lb
CertificationNon-NTEP, industrial use
1Choose size and capacity
Pick the lowest capacity that covers your heaviest load plus the pallet. Readability gets finer as capacity goes down.
Backed by Liberty's 5-year limited warranty
Compare
Same size, other lines

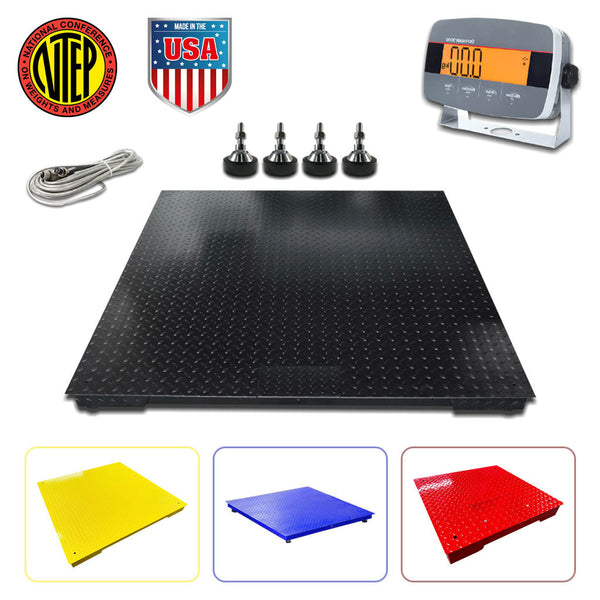

LS-900 · USA aluminum
Liberty LS-900-4x6 NTEP Certified USA Made Floor Scales
4×6 ft1,000 to 20,000 lbNTEPMade in USA
from $2,057.99to $3,793.99 · free shipping
