Ohaus 30"x30" Floor Scale, DFD32M1000ES 1000lbx500kg

by Ohaus
Original price $1,965.00 - Original price $1,965.00
Original price
$1,965.00 - $1,965.00
Current price $1,965.00
  • Overview
    Convenient Portability with Floor Scale Capacity

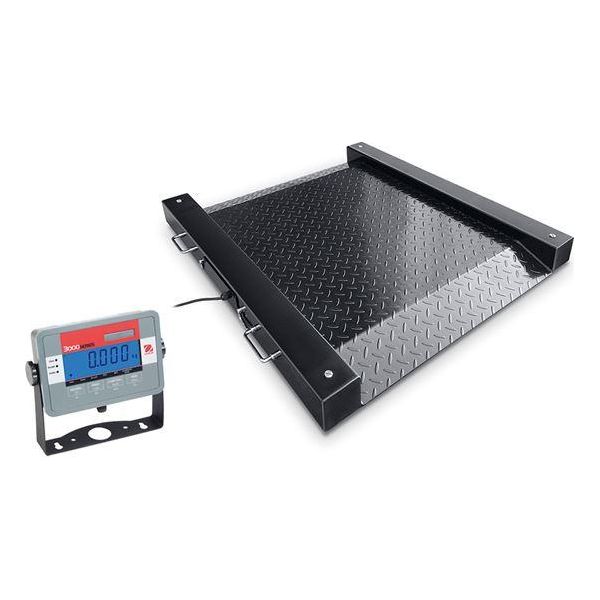

    The Defender 3000 Drum Scale is a durable portable floor scale designed for industrial applications. It features a mild steel platform with treads, built-in front/back access ramps, 4 load cells (with alloy steel feet & top leveling), and the popular T32M indicator for a clear display of weighing results. For rapid portability, the base can be turned onto its side using the stainless steel handles and it can be moved around the shop floor using the two built-in wheels.

    Applications: Parts Counting, Dynamic Weighing, Checkweighing, Weight Accumulation.
    Display: White backlit LCD display.
    Construction: Epoxy-painted carbon steel frame and treaded deck, top adjustable carbon steel feet, IP67 nickel-plated alloy steel shear beam loadcells, IP65 aluminum junction box, T32ME indicator with painted metal back and ABS faceplate, 19.8 ft indicator cord with stainless steel folding cord storage cleats.
    Operation: 9–12 VDC, 0.5A with included AC wall adapter.
    Communication: Standard RS232; Optional Ethernet or USB available with RS232 kits.
    Design Features: Easy mobility with integrated stainless steel folding handles and durable polyurethane wheels, indicator cord storage using folding stainless steel cleats on side of the base. The indicator includes a wall mount bracket.

  • Maximum Capacity 1000.0 lb
    Maximum Capacity 500.0 kg
    Readability 0.1 kg (0.2 lb)
    Platform Size (Length) 762.0 mm (30.0 in)
    Platform Size (Width) 762.0 mm (30.0 in)
    Legal for Trade No
    Power AC Adapter (Included)
    Platform Construction Painted Steel Diamond Plate
    Tare Range To capacity by subtraction
    Net Weight 46.0 kg (101 lb)
    Dimensions (Height) 100.0 mm (4.0 in)
    Working Environment 14°F – 104°F, 85%RH, non-condensing
    Display LCD display with white backlight
    Dimensions (Width) 962.0 mm (37.9 in)
    Dimensions (Length) 1024.0 mm (40.4 in)
    Second Scale Input Not Applicable
    Battery Life Not Applicable
    Protection Rating Not Applicable
    Working Environment -10°C – 40°C, 85%RH, non-condensing
