Struggling with inaccurate measurements in rugged environments?

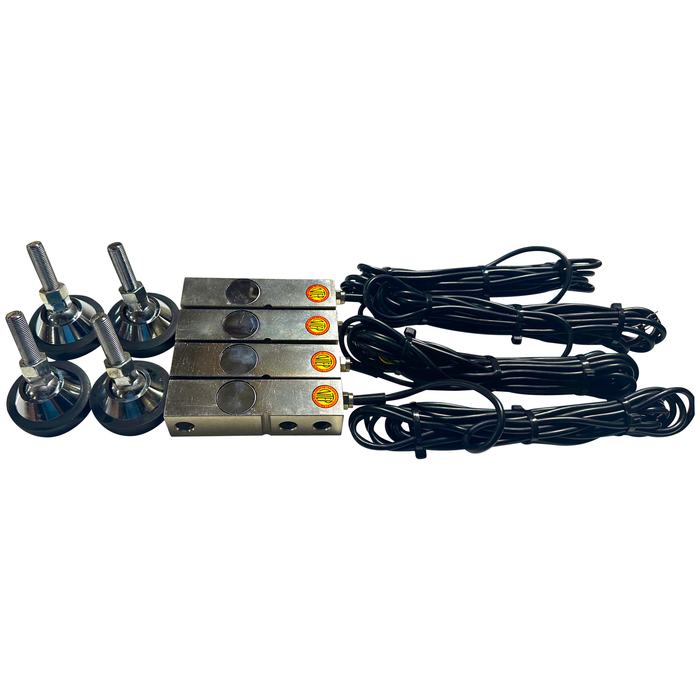

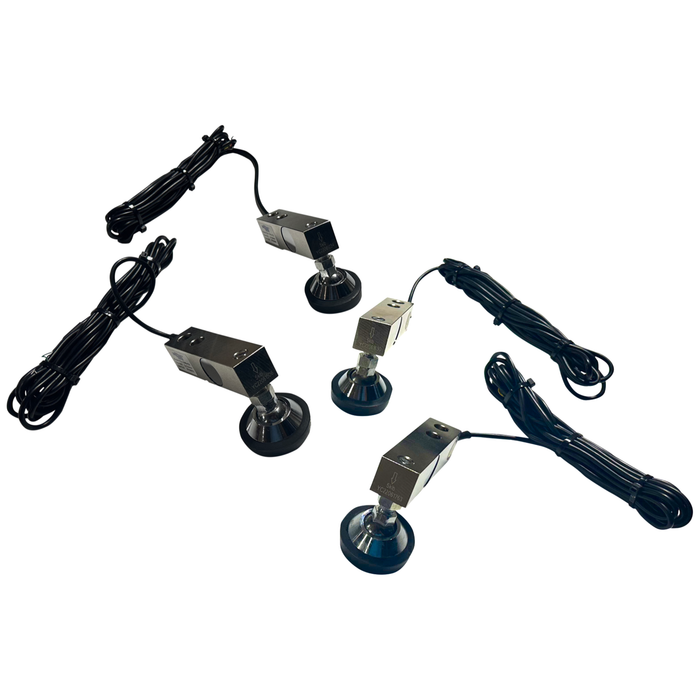

The GX-1-5klb-2.4S Shear Beam Load Cell Kit is your robust solution for precise, reliable industrial weighing. Perfectly tailored for a variety of applications, including floor and platform scales, tank weighing systems, and more, this 5,000-lb capacity load cell is designed to thrive under challenging conditions. Whether in a factory, on a farm, or within a pharmaceutical plant, this load cell ensures top-tier accuracy and durability.
Key Benefits:
-
High-Strength Construction: It is made from tough alloy steel, with a stainless steel variant for extreme conditions, ensuring long-term reliability and resistance to wear and tear.
-
Precision Weighing: Accurate measurements facilitate consistent results in applications such as batching processes, bagging equipment, and animal scales.
-

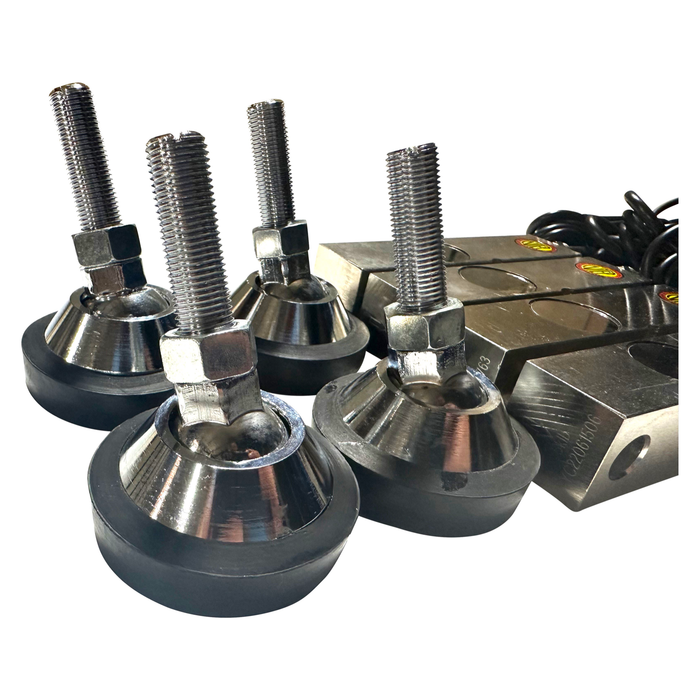

Easy Installation: Features 1/2" 20 UNF threading on 2.4" diameter swivel feet, allowing for quick setup and adjustments on uneven surfaces.
-
Versatile Use: This product is ideal for upgrading existing systems or setting up new installations, providing flexibility across various industrial environments.
-

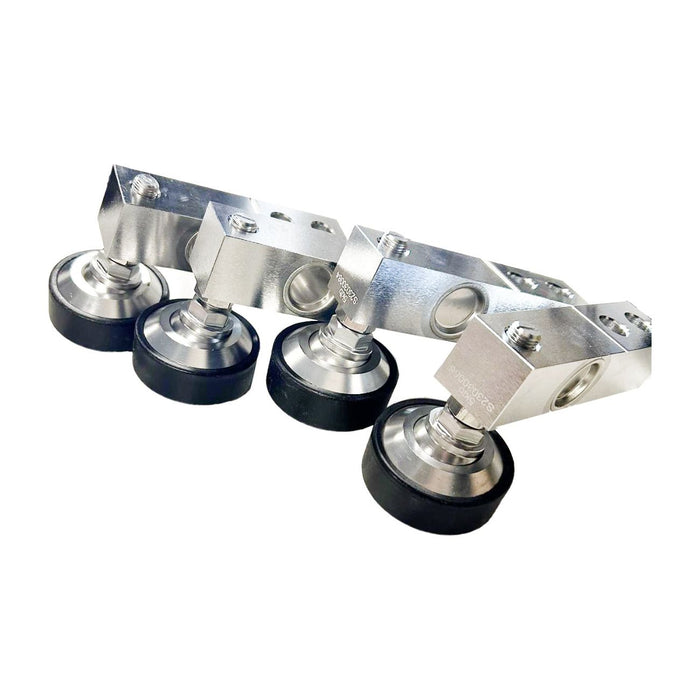

Enhanced Stability: Swivel feet improve stability and maintain accuracy in settings where leveling is difficult, such as outdoor or uneven floors.
Small Envelope Shear Beam Load Cell Specification
-
Capacity: 5,000 lb per cell; Total system: 10,000 lb
-
Calibration Options: 1,000 lb/0.2 lb, 2,500 lb/0.5 lb, 5,000 lb/1 lb, 10,000 lb/1 lb accuracy
-
Output: 3.0 ± 0.003 mV/V
-
Accuracy: ± 0.02% F.S. total error and creep
-
Electrical Specs: Input 385 ± 10 Ω, Output 351 ± 2 Ω
-
Voltage: 4–12 VDC recommended, 15 VDC max
-
Temperature Range: -10 to +40°C
-
Overloads: Safe 150% F.S., Destructive 200% F.S.
-

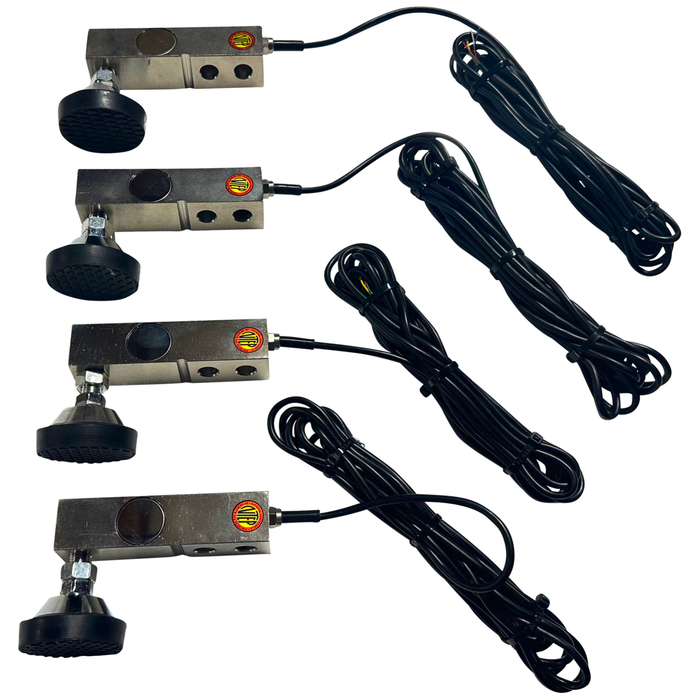

Cable: 10 ft, 4-wire, shielded
-
Wiring: Red (Exc+), Black (Exc-), Green (Sig+), White (Sig-)
-
Material Options: Alloy Steel or Stainless Steel
-
Applications: Floor and platform scales, tanks, conveyors, bagging machines, batching systems, animal scales, custom setups
With the GX-1-5klb-2.4S Shear Beam Load Cell Kit, you'll not only overcome the challenges of imprecise measurements but also enjoy the peace of mind with dependable technology. Elevate your industrial operations by investing in this load cell, and feel the satisfaction of flawless performance and streamlined processes. Trust in our Load Cell Sensors to deliver unmatched accuracy where it counts most.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells, & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
