Load Cells Explained: The Sensor That Decides Whether Your Scale Tells the Truth
Every industrial scale, from a bench scale on a packing line to a truck scale at a quarry, depends on one component for its accuracy. The load cell. It is the transducer that converts the force of a load into an electrical signal the indicator can read. Everything else in the system, the platform, the wiring, the display, exists to support that conversion. When weighing goes wrong, the load cell is usually where the investigation ends.
Understanding how load cells work and how they differ makes you a far better buyer. It is the difference between replacing a failed sensor with the right part and guessing at a number that never quite settles. This guide covers the main types, what the capacity rating really means, and how to choose or replace a load cell with confidence.
How a load cell actually works
Inside most industrial load cells is a precisely machined block of steel or aluminum called the spring element, with strain gauges bonded to it. When a load presses on the cell, the element flexes by a microscopic, predictable amount. The strain gauges change resistance as they stretch or compress, and that change produces a tiny voltage proportional to the force. The indicator reads that voltage and converts it to a weight. The genius of the design is repeatability. The same load produces the same flex and the same signal, thousands of times over.
The main load cell types and where each belongs
Shear beam load cells
Shear beam cells are the workhorse of industrial weighing. One end mounts to a fixed base, the load applies to the other, and the cell measures shear strain in the beam. They are compact, rugged, and well suited to floor scales, bench scales, and platform scales in the low thousands of pounds per cell. For most plant-floor weighing, a shear beam is the default choice.
Compression load cells and canister cells

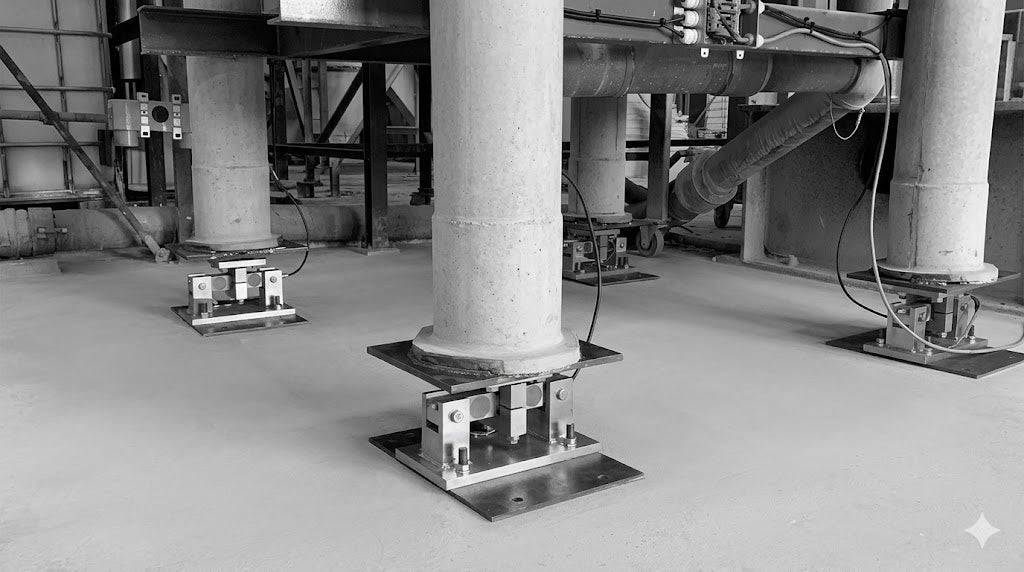

When loads climb into the tens of thousands of pounds, compression cells take over. The load pushes straight down on the cell, which makes them ideal for tank and hopper weighing, truck scales, and any application where high capacity and a self-centering mount matter. Canister cells, a sealed compression design, are built for the harshest high-capacity environments and are common under truck scale decks.
S-type load cells
Named for their shape, S-type cells excel in tension applications such as crane scales, hanging scales, and inline force measurement. They can also work in compression, which makes them a flexible choice for suspended weighing and tension-link systems.
Single point and platform cells
Single point cells are engineered to read accurately regardless of where the load sits on the platform, which is why they sit at the heart of bench and counting scales. Off-center load compensation is built into the cell, so a part placed in the corner weighs the same as one placed in the center.
What the capacity rating really means
A load cell rated for 5,000 pounds is not meant to live at 5,000 pounds. Capacity is the maximum it can measure within spec, and good practice keeps the working load comfortably below it. You also have to account for the number of cells. A four-cell floor scale splits the load across all four, so total system capacity is roughly the per-cell rating times the count, with margin for uneven loading and the shock of items dropped onto the deck.
Two failure modes follow from getting this wrong. Run a cell near its ceiling and it wears and drifts. Exceed its safe overload limit, even briefly, and you can permanently deform the spring element, which means the scale never reads true again. Sizing with headroom is not caution for its own sake. It is how you protect the accuracy you paid for.
Environment, sealing, and material
Where the cell lives determines how long it survives. An IP rating describes resistance to dust and water, and it matters enormously in wet, washdown, or outdoor settings. A hermetically sealed stainless steel cell shrugs off washdown and corrosive environments that would destroy a painted alloy cell coated only in epoxy. In food processing, chemical plants, and outdoor truck scales, sealing is not a premium feature. It is the reason the system still works next year.
Replacing a load cell without introducing error
When one cell in a multi-cell system fails, the temptation is to swap in whatever is on hand. Resist it. Load cells are matched by capacity, output (rated in millivolts per volt), and physical dimensions. Mixing mismatched cells creates corner-load errors that no amount of recalibration fully fixes. Replace with the correct rating and output, confirm the mounting hardware is intact, and recalibrate the system afterward. A load cell kit that includes matched cells, cabling, and a junction box takes the guesswork out of a rebuild.
A quick selection summary
· Bench, floor, and platform scales: shear beam or single point cells
· Tanks, hoppers, and truck scales: compression or canister cells
· Crane, hanging, and tension link scales: S-type cells
· Always size total system capacity above your peak load with overload margin
· Match IP rating and material to the environment, especially for washdown
· Replace like for like by capacity and output, then recalibrate
The bottom line
A scale is only as honest as its load cells. Choose the right type for the geometry of your load, size capacity with real headroom, seal it for the environment, and the rest of the system can do its job. Get the sensor wrong and no indicator, no calibration routine, and no premium platform will save the reading. The load cell is where accuracy begins, which is exactly why it deserves the attention.
