How to Use the LS 928 W Weigh Pad System for Accurate Axle Weighing

Looking for a reliable method to weigh vehicle axles accurately? The LS 928 W Weigh Pad System offers a portable and precise solution. This guide will walk you through unpacking, setting up, and using the system, including details on its key components like weigh pads, wireless indicators, and built-in printers.

Key Takeaways

• The LS-928-W Weigh Pad System includes six durable aluminum weigh pads, a wireless indicator, and a built-in printer, designed for efficient and accurate vehicle weighing.

• Proper setup, including ensuring a level and appropriate weighing surface, is essential for obtaining precise weight measurements.

• Regular maintenance, calibration, and troubleshooting are critical for the longevity and reliability of the weigh pad system’s performance.

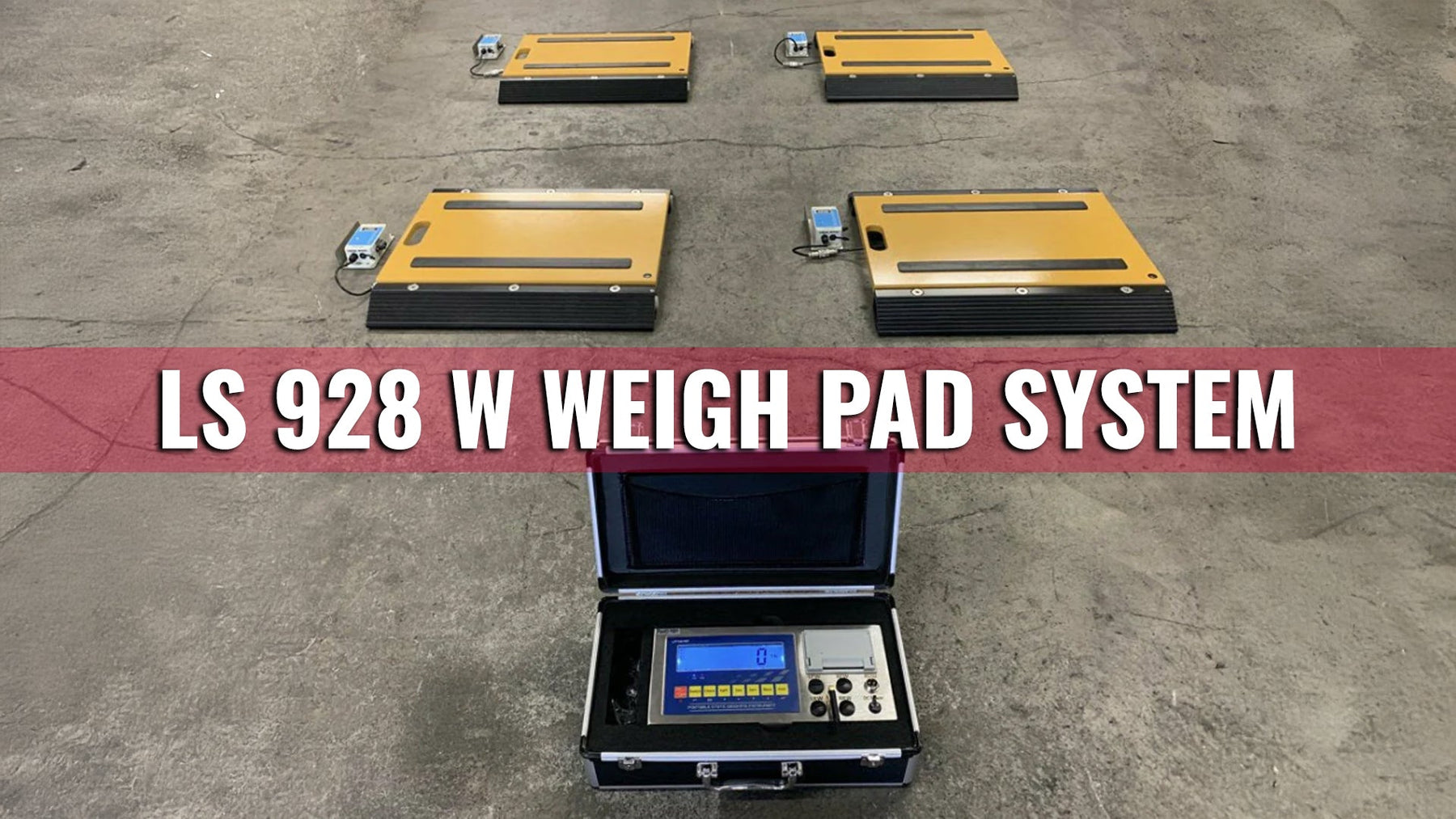

Unpacking Your Liberty LS-928-W Weigh Pad System

The excitement of receiving your Liberty LS-928-W Weigh Pad System is only matched by the anticipation of its first use. Unpacking the system is the first step towards accurate, on-the-go weighing. The package includes several essential components designed for heavy-duty use, ensuring you are well-equipped for any weighing task.

Inside the box, you’ll find:

• Six lightweight yet durable aluminum weigh pads, which are the heart of the system and provide the surface on which vehicles will be weighed. Their construction balances portability with the strength to handle large weights.

• A wireless indicator, a key tool for monitoring weight measurements.

• A built-in printer, essential for recording weight measurements.

Each component has been meticulously designed to offer the best in performance and convenience. The weigh pads, with their high-strength aluminum build, ensure durability and ease of transport. The wireless indicator and built-in printer streamline the process, making it straightforward to get precise readings and maintain accurate records. As you unpack, you’ll appreciate the thought put into every detail, laying the foundation for a completely portable weighing experience.

Setting Up the Weigh Pads

Setting up the weigh pads correctly is crucial for obtaining accurate measurements. The first step is to choose a level area for the setup. A level surface is essential when weighing vehicles with more than two axles, as it ensures even weight distribution across all pads. Ideally, the levelled area should be twice the length of the longest vehicle you plan to weigh, providing ample space for accurate readings.

For vehicles with five axles, the following recommendations apply:

• A minimum level length of 3 meters before and after the pads is recommended.

• This setup allows the vehicle to be positioned correctly, ensuring all wheels are level and aligned on a uniform plane.

• The area beneath the weighing surface must be capable of sustaining maximum loads to prevent inaccuracies.

• Smooth, flat surfaces like concrete or asphalt are ideal for this purpose.

To achieve a level area, you may use levelling modules such as LME and LMD or install a frame for pads flush with the floor. The goal is to eliminate any unevenness that could distort weight readings. Once the area is prepared, place the weigh pads in the designated spots, ensuring they are level and secure. Proper placement and alignment of the pads are crucial for precise measurements.

Setting up the weigh pads might seem like a meticulous task, but it’s a critical step that ensures your weighing operations are accurate and reliable. With everything in place, you can confidently proceed to the next steps, knowing your foundation is solid.

Connecting the Wireless Indicator

The wireless indicator is a vital component of the LS-928-W Weigh Pad System, providing a seamless connection between the weigh pads and the user interface. To start, power on the indicator before attempting to connect it to the weigh pads. This initial step ensures proper communication between the devices.

Secure connections are paramount for maintaining a reliable signal. Regularly inspect the connections between the wireless indicator and the weigh pads to ensure they are secure. Using a metal shielded cable that is 33 feet long can help maintain stable connectivity and reduce the risk of wireless interference. The LS-7561 indicator, part of the system, features an integrated printer, adding convenience for on-site weight documentation.

If you encounter connectivity issues, try the following steps:

• Check for any interference from other wireless devices in the vicinity.

• Regularly inspect signal strength to ensure optimal performance during use.

• If issues persist, reset the wireless indicator and attempt to reconnect to the weigh pads.

With a stable connection, you can confidently proceed with your weighing operations, knowing that your data will be accurate and reliable, thanks to accurate weighing systems.

Using the Built-In Printer

The built-in printer on the LS-928-W system is designed for ease of use, enabling quick and efficient recording of weight measurements. To load paper, ensure the printer is powered off, then insert the roll following the designated paper path. This process is straightforward and ensures the printer is ready for use whenever needed.

Before printing, customers should set the desired print settings from the indicator menu to create discover. Adjust parameters like date and time formats to determine that the printed data meets your tracking requirements.

The printed data includes essential information such as weight measurements, date, time, and the vehicle ID, providing a comprehensive record for each weighing operation. This feature enhances your ability to monitor and document weight measurements accurately.

Ensuring Accurate Measurements

Accurate measurements are the cornerstone of effective weighing operations. To achieve this, consider the following:

• All wheels of the vehicle must be level and aligned on a uniform plane.

• Avoid using weigh pads on an inclined surface, as this can distort weight distribution and lead to inaccurate readings.

• Always ensure the surface is smooth and flat, such as concrete or asphalt, which supports the maximum load.

Regular calibration of the weigh pads is essential to maintain their accuracy over time. Periodic checks should include inspecting for physical damage and verifying the integrity of connections. Inaccurate weight measurements can result from obstructions beneath the weigh pads, so ensure the area is clear and capable of supporting the maximum load.

By following these practices, you ensure that your weigh pads provide precise measurements consistently. This reliability is crucial for determining accurate vehicle loads, ensuring safety, and maintaining compliance with industry standards. Regular maintenance and attention to detail in the setup process will help achieve this goal to weigh vehicles effectively.

Benefits of the LS-928-W Weigh Pad System

The LS-928-W Weigh Pad System offers numerous benefits that make it a preferred choice for various industries. Its portability allows for weighing vehicles in multiple locations, making it an ideal solution for on-the-go weighing operations. The weighing system includes skid-resistant ramps, ensuring secure vehicle alignment and enhancing usability with a portable axle and a portable truck scale, as well as a portable truck for cargo.

Each weigh pad contains six load cells, providing accurate and consistent weight readings, which are crucial for effective axle and truck scale operations. The high-strength aluminum construction ensures the weigh pads are lightweight yet durable, capable of withstanding rigorous use. The splash-proof design of the indicator enhances its reliability in various environmental conditions. Additionally, a load cell portable truck axle scales can be utilized to further enhance the efficiency of these operations. Truck scales can also play a vital role in ensuring accurate measurements. An axle scale system can further improve the overall accuracy and efficiency of weight management, including axle weighing. Steel truck scales can also play a vital role in ensuring accurate measurements. Weighing scales can be an essential tool in this process. The axle scale is an important component in achieving precise weight management.

The system’s flexibility is further enhanced by a 33-foot cable, allowing for convenient placement of the indicator and printer. These features collectively make the LS-928-W a robust and efficient solution for accurate weighing operations, offering legal-for-trade measurements when used correctly.

Maintenance and Care

Proper maintenance and care of the LS-928-W Weigh Pad System are essential to ensure its longevity and accuracy. Regular calibration by qualified professionals is crucial to maintain the precision of the weigh pads. This practice helps ensure that your measurements remain accurate over time, preventing any discrepancies that could arise from uncalibrated equipment.

To maintain weigh pads effectively:

• Clean the weigh pads with non-abrasive materials to help prolong their lifespan.

• Perform regular maintenance of the built-in printer, including cleaning the print head, to ensure clear and accurate printouts.

• Store the weigh pads properly in a dry and protected environment to prevent damage.

By following these maintenance and care practices, you can maximize the durability and efficiency of your LS-928-W Weigh Pad System, ensuring it continues to provide reliable and accurate weight measurements for years to come.

Troubleshooting Common Issues

Even with the best equipment, issues can sometimes arise. Connectivity problems with the LS-928-W system may occur due to interference from other wireless devices nearby. To resolve this, check for any potential sources of interference and ensure a clear line of communication between the indicator and weigh pads.

Printer malfunctions can often be resolved by ensuring the paper is loaded correctly and that the printer is powered on. Simple checks like these can quickly address common issues, allowing you to maintain smooth and efficient weighing operations without significant downtime and ensuring your machinery is functioning properly.

Liberty Scales

Liberty Scales is a renowned name in the industry, known for its commitment to quality and innovation in weighing systems. The LS-928-1728 Weigh Pad System exemplifies this commitment with the following features:

• Total capacity of 50,000 pounds, capable of weighing even the heaviest vehicles efficiently

• Each weigh pad contains eight load cells

• Ensures highly accurate weight measurements during axle and vehicle weighing

Constructed from high-strength aluminum, the portable weigh pads are both durable and lightweight, providing a perfect balance between portability and robustness. The system includes interlocking skid-resistant ramps that provide safe access to the weigh pads, and the pads measure 17 inches by 28 inches, offering a large surface area while remaining compact for various operational settings.

The LS-928-1728 system features:

• A built-in printer for recording weights, which can operate in manual or automatic printing modes.

• Flexible setup options allowing customization of the number of wireless pads used, enhancing operational efficiency.

• A splash-proof design that ensures it can withstand tough working environments, contributing to its long-term reliability.

Summary

In summary, the Liberty LS-928-W Weigh Pad System offers a comprehensive solution for accurate, on-the-go axle weighing. From unpacking the system to setting up the weigh pads, connecting the wireless indicator, and using the built-in printer, every step is designed for ease of use and precision. Regular maintenance and troubleshooting tips ensure your equipment remains in top condition, providing reliable weight measurements for years to come.

Whether you are in logistics, construction, or any industry requiring precise weight measurements, the LS-928-W system is a valuable addition to your toolkit. Its portability, accuracy, and durability make it an indispensable asset for efficient weighing operations. Embrace the future of axle weighing with Liberty Scales and experience the difference in your operational efficiency and accuracy.

Frequently Asked Questions

What components are included in the LS-928-W Weigh Pad System package?

The LS-928-W Weigh Pad System package includes six weigh pads, a wireless indicator, and a built-in printer, ensuring you have everything needed for precise axle weighing.

How do I ensure accurate measurements with the LS-928-W system?

To ensure accurate measurements with the LS-928-W system, confirm that all vehicle wheels are level and aligned on a uniform surface, such as concrete or asphalt, and routinely calibrate the weigh pads. This will enhance the reliability of your measurements.

What should I do if the wireless indicator loses connection with the weigh pads?

If the wireless indicator loses connection with the weigh pads, ensure there are no interferences from other devices, check all connections, and reset the wireless indicator to reconnect.

How do I load paper into the built-in printer?

To load paper into the built-in printer, power off the printer and insert the roll according to the specified paper path. This ensures proper functionality and avoids any printing issues.

What maintenance is required for the LS-928-W Weigh Pad System?

Maintaining the LS-928-W Weigh Pad System requires regular calibration by qualified professionals, cleaning the pads with non-abrasive materials, proper printer maintenance, and ensuring the pads are stored in a dry, protected environment. Adhering to these practices will ensure optimal performance of the system.
