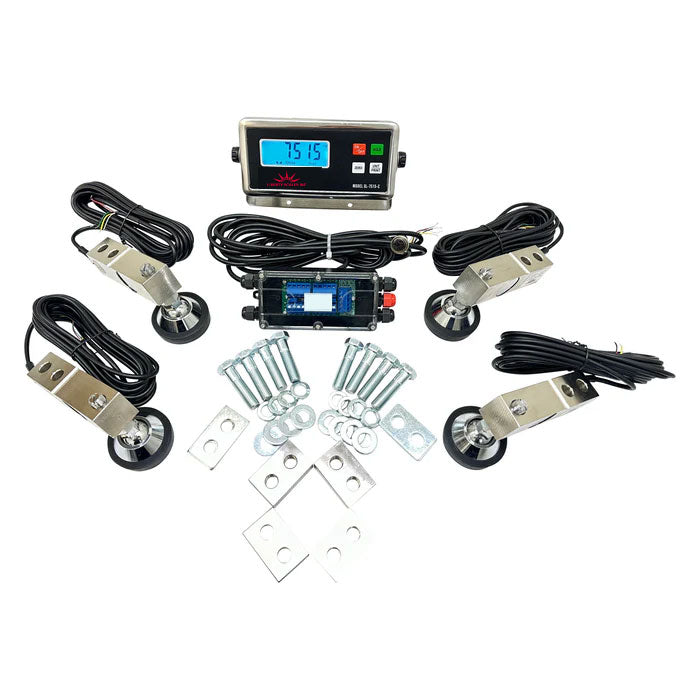

Liberty Scales LS-WK-10k-NN Weighing Kit

The LS-WK-10k-NN is an economical and versatile non-NTEP weighing kit designed to handle capacities up to 10,000 lbs. This kit includes our reliable LS-7515-C indicator, built for both indoor and outdoor use. Power options are flexible, with support for a DC power cable or AA batteries for added convenience.

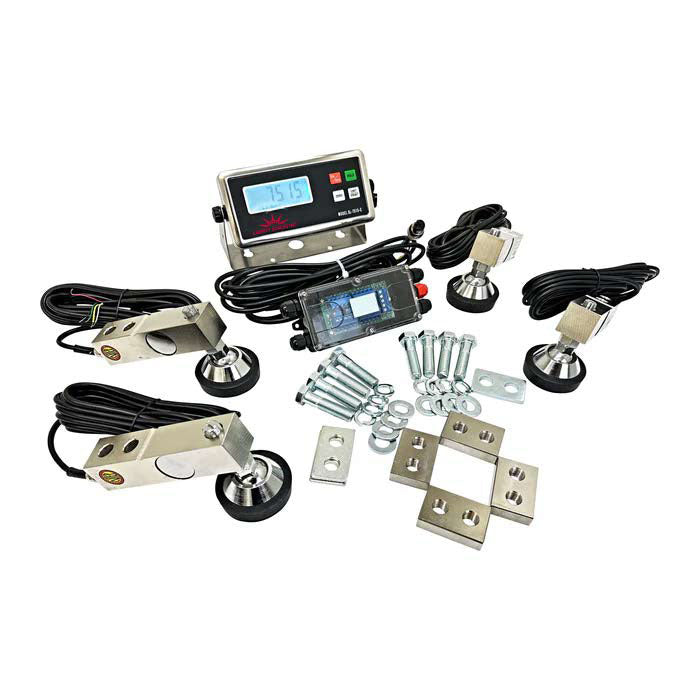

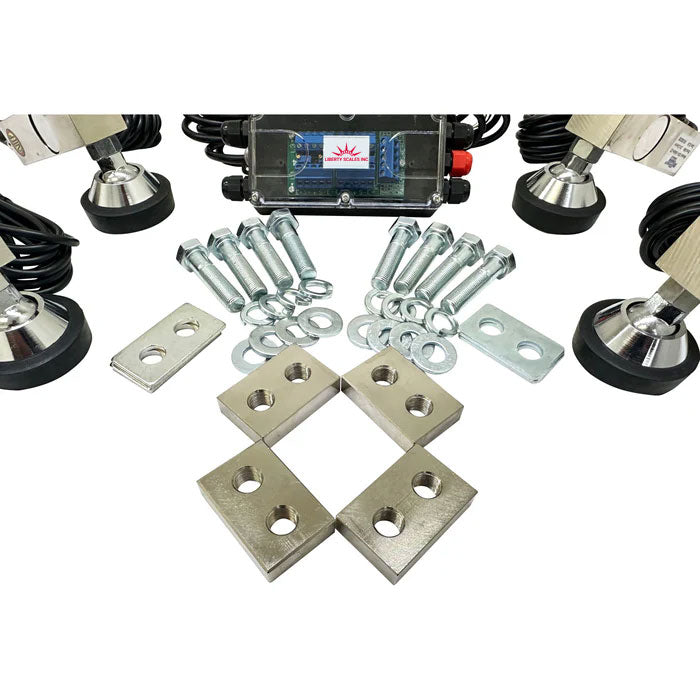

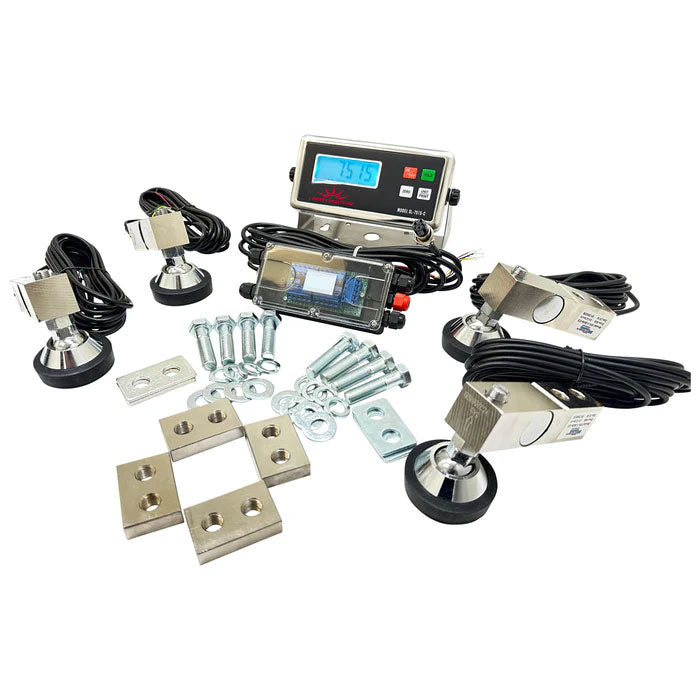

The kit features high-quality shear beam load cells, ideal for a variety of applications, including floor scales, small hoppers, tanks, or even for constructing custom animal scale chutes. It comes equipped with a clear top ABS junction box, and all the necessary hardware (bolts, nuts, washers, and lock washers) to ensure easy installation.

Easy Calibration:
Calibration is straightforward, and we provide two video guides for your reference. Choose whole number calibration for basic needs or decimal calibration for enhanced precision.

Capacity & Accuracy Options:

• 1,000 lb capacity x 0.2 lb accuracy
• 2,500 lb capacity x 0.5 lb accuracy
• 5,000 lb capacity x 1 lb accuracy
• 10,000 lb capacity x 1 lb accuracy

Whether you’re setting up a small-scale system or a heavy-duty application, the LS-WK-10k-NN offers the flexibility and precision you need.

LS-7515-C Indicator specifications:

• High-Visibility Display: A 6-digit, 0.7-inch tall LCD display with a backlight makes reading measurements easy and clear, even in low-light conditions.
• Versatile Units of Measurement: Offers the flexibility to measure in pounds (lb), kilograms (kg) as primary units, and ounces (oz) as a secondary unit, catering to a wide range of weighing needs.
• Exceptional Accuracy: Adheres to OIML III standards with a normal count (n) of 3000e, ensuring reliable and consistent accuracy in every measurement.
• High Resolution: Features an impressive 120,000 dd industrial resolution and a 10,000 dd HB44 resolution, suitable for various high-precision weighing tasks.
• Optimized Load Cell System: Equipped with four load cells, each with a maximum resistance of 350 Ω, for balanced and accurate weight distribution.
• Stable Load Cell Excitation: Maintains a steady 5 ± 0.5VDC, contributing to the scale's precision and reliability.
• Advanced Display Resolution: Offers up to 1/15,000 display resolution, making it ideal for detailed and fine measurements.
• Durable and Portable: Weighing just 1.2 lbs, this scale combines durability and portability, perfect for both stationary and on-the-go use.
• Customizable Display Increments: Select from increments of 1, 2, 5, 10, 20, or 50, allowing for tailored measurement precision as per your requirements.
• Decimal Point Flexibility: Choose from 0, 1, 2, 3, or 4 decimal places for customized readability according to your specific needs.
• Wide Tare Range: Offers a tare range from 2% to 100% of the maximum capacity, enhancing the scale's versatility in various weighing scenarios.
• Efficient Zero Ranges: Features an initial zero range of ±10% and a manual zero range of ±2% of the maximum capacity, ensuring accuracy from the start of each weighing session.
• Broad Operating Temperature: Efficiently operates within a temperature range of 14 °F to 104 °F (-10 °C to +40 °C), suitable for diverse environments.

Load cell Specifications:

• Rated Output (mV/V): 3.00±0.015
• Nonlinearity: ±0.02%FS
• Hysteresis: ±0.02%FS
• Repeatability: ±0.01%FS
• Creep (30 minutes): ±0.02%FS
• Zero Balance: ±1.00%FS
• Temperature Effect on Zero: ±0.02%FS/10°C
• Temperature Effect on Output: ±0.02%FS/10°C
• Input Resistance: 385±5Ω
• Output Resistance: 350±3Ω
• Insulation Resistance: ≥5000MΩ
• Excitation Voltage: 10V(DC/AC)
• Compensated Temperature Range: -10°C ~ 50°C
• Operating Temperature Range: -20°C ~ 60°C
• Safe Overload: 120%FS
• Cable: 5.4x6 m
